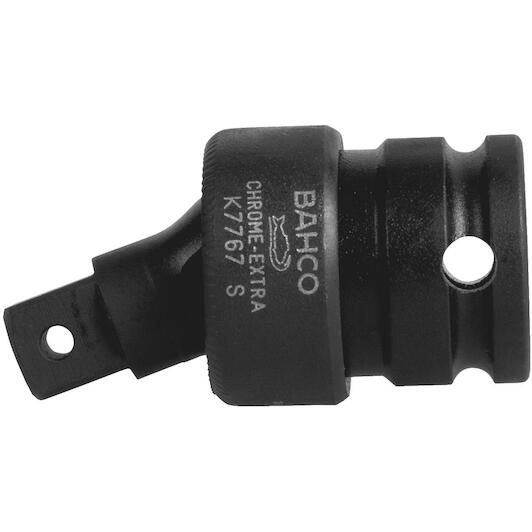

Product description:
- Drive: 3/8" DIN 3121-G 10 ISO 1174
- Finish: Black finish
- Material: High performance alloy steel
- With spring loaded pin
- Maximun angle 35º
- To be used with machines
- For maximum safety, use clamping springs
- D2= outside diameter of the female end
Key features according to our expert
-
Drive profile size: 3/8"
-
Type of drive profile: External square
-
Connection profile: Inner square
-
Length: 49 mm
-
Connection size: 3/8"
Specifications / All features
-
Brand:
BAHCO
-
41851149
-
EAN:
7314151222512
-
Supplier number:
BAHCO K7767S
- Drive profile size
- 3/8"
- Type of drive profile
- External square
- Connection profile
- Inner square
- Length
- 49 mm
- Connection size
- 3/8"
- Female square drive
- 3/8"
- Outside diameter of female end mm (d2)
- 20 mm
- Clamping spring
- K560F-3
- Male square drive
- 3/8"
- Length extension mm
- 49 mm
- Norms
- DIN 3121-G 10 / ISO 1174
- Weight g
- 82 g
