BAHCO

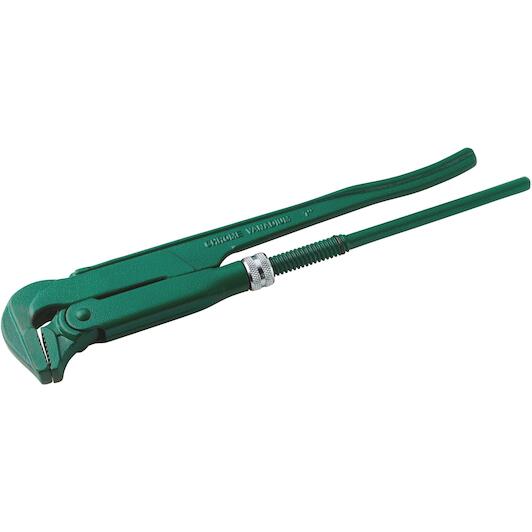

BAHCO DOW 175-3 pipe spanner ERGO 90°, Swedish model, green powder-coated, 3", 630 mm

Recommended Retail Price €354.48
216.80 tax incl.
€179.17 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

Alternative to this product

Product description:

  • Gripping capacity up to 76 mm (3") and a jaw opening up to 103 mm (4 1/10")
  • Drop forged steel with induction hardened teeth
  • Green powder coating
  • DIN 5234
Key features according to our expert
  • Max. pipe diameter: 3 inch
  • Clamping width: 103 mm
  • Angle: 90 °
  • Non-sparking: No
  • Overall length: 620 mm
  • Product Range: Bahco ERGO
Specifications / All features
Max. pipe diameter
3 inch
Clamping width
103 mm
Angle
90 °
Non-sparking
No
Overall length
620 mm

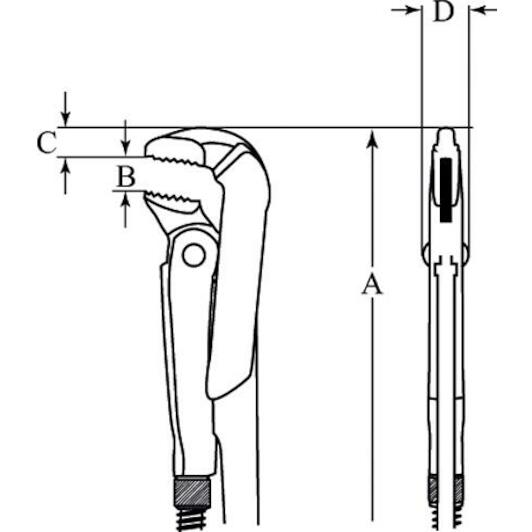

Head length inch (b)
3.7 in
Weight g
3030 g
Thickness total mm (d)
28 mm
Length mm (a)
630 mm
Total length mm
630 mm
For pipes up to inch
3 in
Norms
DIN 5234
Head height mm (c)
30 mm
Jaw height mm (b)
103 mm
Product range
Bahco ERGO
