Product description:
- Mechanical adjustable click torque spanner with free hand placement and interchangeable head with key
Features:
- Not dependent on length, so can be used with or without the extension handle (optional)

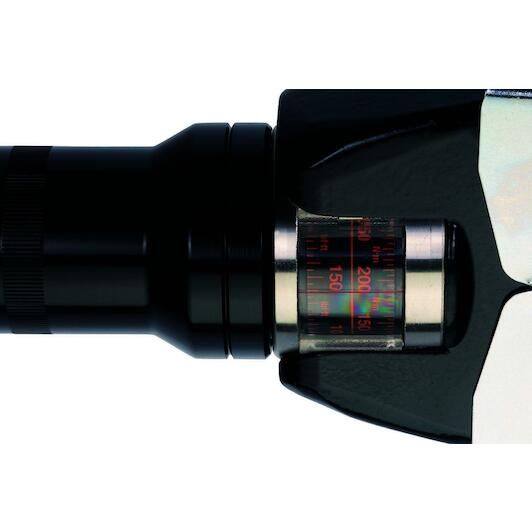

- Large double scale inNm/ft.lb
- Range of torque values ranges from 130 to 650Nm/100 to 480 ft.lb
- Can be used clockwise or anti-clockwise by reversing the spanner
- Accurate to ±3% of measured value, better than the requirements of ISO6789-1:2017
- Exceptionally clear torque signal from unique mechanism

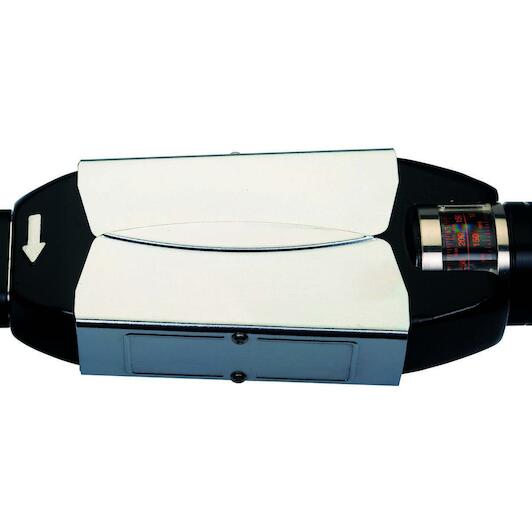

- 22 mm interchangeable head with key, can be used clockwise or anti-clockwise
- Extension handle significantly reduces user effort for high torque values
- All in portable robust blow-moulded case
- All spanners come with manufacturer's declaration of conformity, traceable to international standards
- ISO 6789
- Made in the United Kingdom
Key features according to our expert
-
Min. tightening torque: 130 Nm
-
Drive profile size: 22 mm
-
VDE approved: No
-
With safety colour code 1000V: Not applicable
-
ESD: No
-
Adjustable torque range: 130-650 Nm
-
Max. tightening torque: 650 Nm
Specifications / All features
-
Brand:
BAHCO
-
08080059
-
EAN:
7314150415243
-
Supplier number:
BAHCO 75S-650
- Min. tightening torque
- 130 Nm
- Drive profile size
- 22 mm
- Vde approved
- No
- With safety colour code 1000v
- Not applicable
- Esd
- No
- Adjustable torque range
- 130-650 Nm
- Max. tightening torque
- 650 Nm
- Measuring range lb.ft
- 100-480 lbf·ft
- Weight g
- 3600 g
- Torque range nm
- 130-650 N·m
- Total length mm (a)
- 807 mm
- Weight kg
- 3.600 kg
- Norms
- ISO6789-2:2017
- Scale nm
- 5 N·m
