What is the adjustable torque range of this torque wrench?

The torque range covers 3 to 15 Nm (27 to 132 in.lb) with a clear dual scale.

What drive size does the ratchet head feature?

The fixed ratchet head has a standard 1/4" square drive for compatible sockets and bit holders.

How does the wrench signal when the set torque is reached?

The click mechanism provides both a tactile feedback and an audible click signal upon reaching torque.

Can this torque wrench be used for counter-clockwise tightening?

No, this torque wrench is designed for accurate torque tightening in a clockwise direction only.

Is this tool VDE or ESD certified?

No, this model is neither VDE insulated nor ESD certified.

BAHCO 74WR-15 torque spanner with double scale and fixed ratchet head 3-15 Nm

Name: BAHCO 74WR-15 torque spanner with double scale and fixed ratchet head 3-15 Nm
Brand: BAHCO
SKU: 08080074
Price: 179.95 EUR
Availability: PreOrder

Supplier number: BAHCO 74WR-15 | EAN 7314150415519

Recommended Retail Price €358.18

179.95 tax incl.

€148.72 excl. VAT (incl. all environmental contributions)

On order: delivered from 10/10/2026

Ordered before 20:00 - delivered as of 10/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Accurate fastening with Bahco 74WR-15

Practical benefits

Tactile and audible click: You instantly know when target torque is reached via the clear sensory click mechanism.
Easy dual scale reading: You quickly set required torque values using the high-contrast scale marked in Nm and in.lb.
Controlled low torque precision: You fasten delicate components safely within the precise 3 to 15 Nm operating range.

In a nutshell

The right choise for

With the Bahco 74WR-15 click torque wrench, you fasten bolts and nuts with complete precision. Covering an adjustable range from 3 to 15 Nm, it prevents overtightening, stripping threads, and damaging delicate components made of carbon or aluminium. The clear analogue dual scale marked in Nm and in.lb allows you to set the required torque value quickly and easily. As soon as the preset torque is reached, the mechanism provides an unmistakable tactile and audible click signal to let you know instantly. Featuring a fixed 1/4" square drive ratchet head, this tool is ideal for precision mechanics, bicycles, and automotive maintenance.

Product information FAQ

€179.95

tax incl.

Key features according to our expert

Max. tightening torque: 15 Nm
Drive profile size: 1/4"
VDE approved: No
With safety colour code 1000V: Not applicable
ESD: No
Display: Analogue
Min. tightening torque: 3 Nm

Product description:

Double-shell torque spanner with fixed ratchet head

Features:

Durable mechanism with more than 100,000 cycles within accuracy standard
Quick scale adjustment making adjustment less effort
TIME TRIP Visual indication that the spanner needs to be recalibrated with graduations of 3, 6, 9 and 12 months
Large double scale inNm/in.lb
Range of torque values ranges from 3 to 25Nm/27 to 220 in.lb
Can only be used clockwise
Accurate to ±3% of measured value, better than the requirements of ISO6789-1:2017
Click system activates a tangible and audible signal

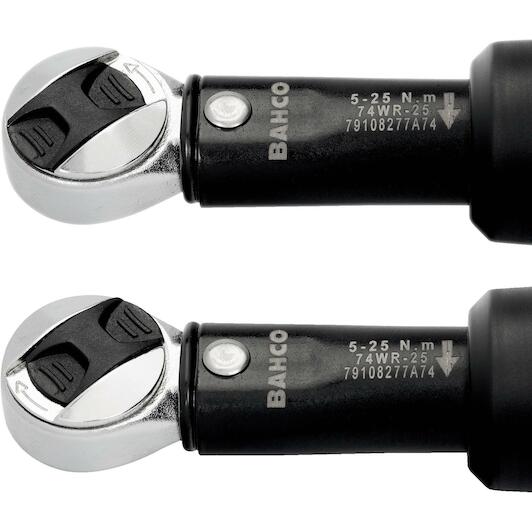

Reversible ratchet head with 1/4" square connections, for clockwise use only

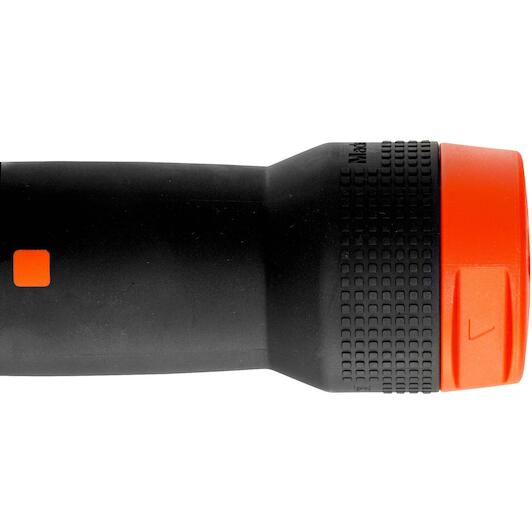

Centre of handle or calibration force point marked on handle

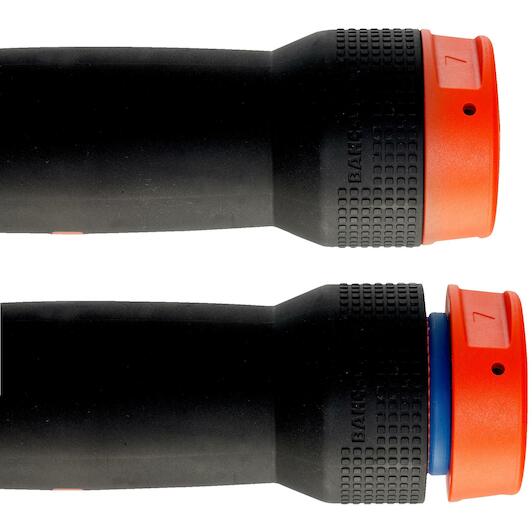

Lock/unlock button with blue ring on the inside alerting the user when the key is unlocked
All in semi-transparent square tube with eurohole hanger
All keys come with manufacturer's declaration of conformity, traceable to international standards
ISO 6789
Made in the United Kingdom

All Features

Max. tightening torque: 15 Nm
Drive profile size: 1/4"
Vde approved: No
With safety colour code 1000v: Not applicable
Esd: No
Display: Analogue
Min. tightening torque: 3 Nm
Weight kg: 0.300 kg
Weight g: 300 g
Head width mm (d): 25 mm
Torque range nm: 3-15 N·m
Square drive: 1/4"

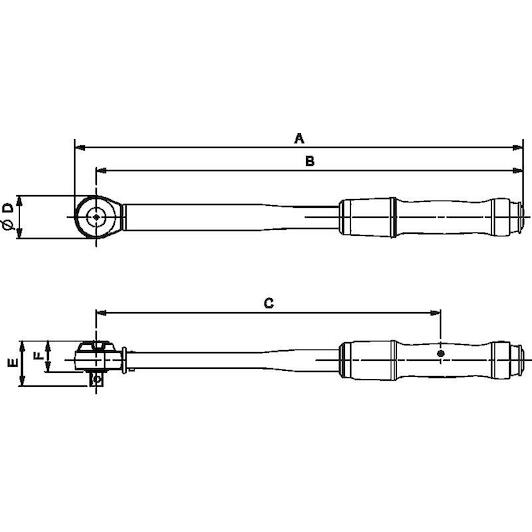

Total length mm (a): 221 mm
Square inch: 1/4 in
Measuring range lb.in: 27-132 lbf·in
Norm: ISO6789-2:2017
Scale nm: 0,1 N·m

Brand BAHCO
08080074
EAN 7314150415519
Supplier number BAHCO 74WR-15

Frequently asked questions about this product

Answered by specialists

What is the adjustable torque range of this torque wrench?: The torque range covers 3 to 15 Nm (27 to 132 in.lb) with a clear dual scale.
What drive size does the ratchet head feature?: The fixed ratchet head has a standard 1/4" square drive for compatible sockets and bit holders.
How does the wrench signal when the set torque is reached?: The click mechanism provides both a tactile feedback and an audible click signal upon reaching torque.
Can this torque wrench be used for counter-clockwise tightening?: No, this torque wrench is designed for accurate torque tightening in a clockwise direction only.
Is this tool VDE or ESD certified?: No, this model is neither VDE insulated nor ESD certified.
