What is the adjustable torque range of this wrench?

The adjustable torque range is 80 to 400 Nm.

What drive size does the Bahco 74W14-400 use for inserts?

It features a 14 x 18 mm rectangular female drive for interchangeable head inserts.

Can this torque wrench be used for clockwise and anticlockwise tightening?

Yes, turning the interchangeable insert over allows controlled tightening in both directions.

How does the wrench signal that the set torque is reached?

The click mechanism provides both a tactile and an audible click when torque is reached.

Is this tool insulated for electrical live working?

No, this torque wrench is not VDE certified and not insulated.

BAHCO 74W14-400 torque spanner with double scale and interchangeable head 80-400 Nm

Name: BAHCO 74W14-400 torque spanner with double scale and interchangeable head 80-400 Nm
Brand: BAHCO
SKU: 08080049
Price: 351.4 EUR
Availability: PreOrder

Supplier number: BAHCO 74W14-400 | EAN 7314150415724

Recommended Retail Price €575.97

351.40 tax incl.

€290.41 excl. VAT (incl. all environmental contributions)

On order: delivered from 15/10/2026

Ordered before 20:00 - delivered as of 15/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Precision tightening control with Bahco

Practical benefits

Clear sensory click feedback: The integrated click mechanism provides you with tactile and audible confirmation once target torque is achieved.
Reliable setting accuracy: Tighten fasteners with confidence knowing the ±3% accuracy ensures consistent compliance across demanding applications.

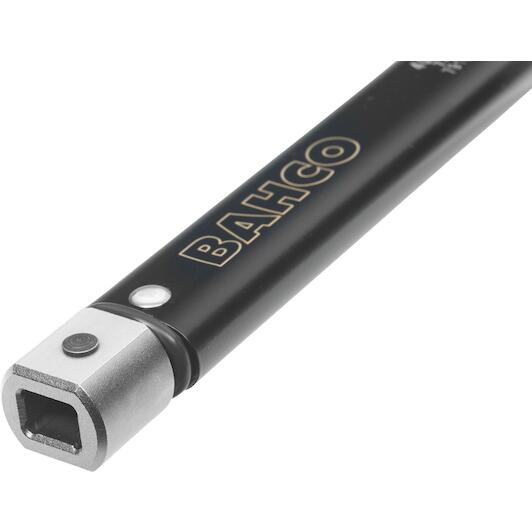

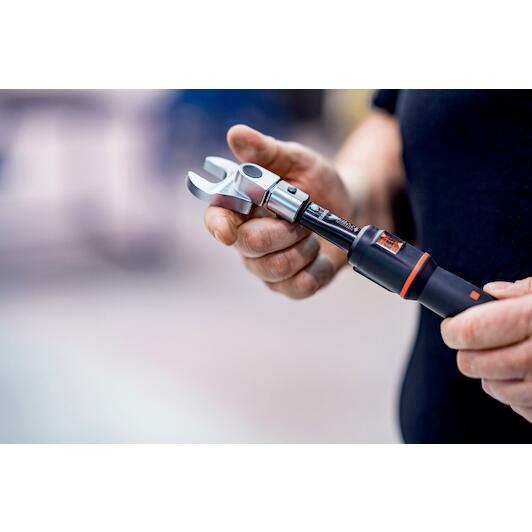

Versatile interchangeable fitment: The 14 x 18 mm rectangular receiver allows you to swap insert heads quickly to suit multiple tasks.

In a nutshell

The right choise for

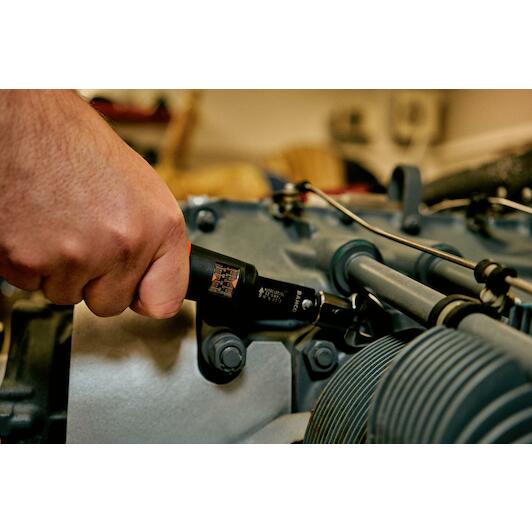

With the Bahco 74W14-400 click torque wrench, you secure demanding bolted joints with absolute control. Offering an adjustable range from 80 to 400 Nm and setting accuracy within ±3%, it prevents over-tightening or loosening during heavy assembly, machinery maintenance, and commercial vehicle repairs. The 14 x 18 mm rectangular receiver lets you fit various interchangeable insert heads to match your specific fasteners and access constraints. When you reach the preset torque value, the click mechanism provides clear tactile and audible confirmation so you never over-torque. By simply reversing the insert head, you can tighten accurately in both clockwise and anticlockwise directions.

Product information FAQ

€351.40

tax incl.

Key features according to our expert

Max. tightening torque: 400 Nm
Drive profile size: 14 x 18 mm
VDE approved: No
With safety colour code 1000V: Not applicable
ESD: No
Display: Analogue
Min. tightening torque: 80 Nm

Product description:

Torque spanner with double scale and insert change system

Features:

Durable mechanism with more than 100,000 cycles within accuracy standard
Quick scale adjustment making adjustment less effort
TIME STRIP Visual indication that the spanner needs to be recalibrated with graduations of 3, 6, 9 and 12 months

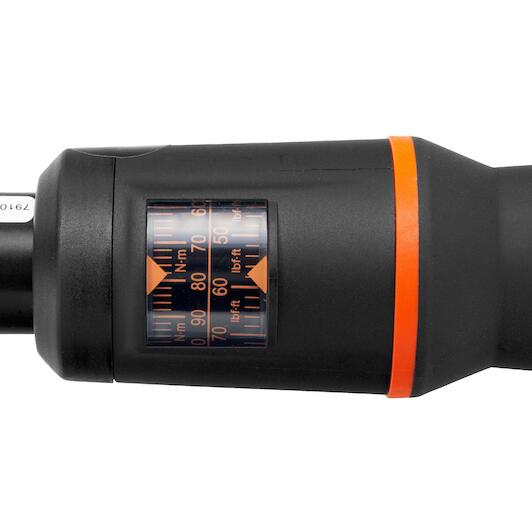

Large dual scale inNm/ft.lb (15 and 25Nm spanner sizes inNm/in.lb)
Torque values range from 3 to 400Nm/27 in.lb to 300 ft.lb
Can be used clockwise or anti-clockwise by reversing the spanner
Accurate to ±3% of measured value, better than the requirements of ISO6789-1:2017
Click system activates a tangible and audible signal
9 x 12 and 14 x 18 female rectangular interchangeable heads, can be used clockwise or anti-clockwise
Centre of handle or calibration force point marked on handle

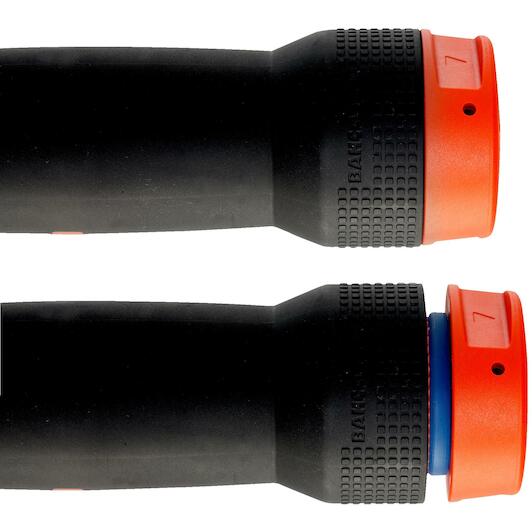

Lock/unlock button with blue ring on the inside alerting the user when the key is unlocked
All in semi-transparent square tube with eurohole hanger
All keys come with manufacturer's declaration of conformity, traceable to international standards
ISO 6789
Made in the United Kingdom

All Features

Max. tightening torque: 400 Nm
Drive profile size: 14 x 18 mm
Vde approved: No
With safety colour code 1000v: Not applicable
Esd: No
Display: Analogue
Min. tightening torque: 80 Nm
Weight kg: 1.700 kg
Scale nm: 5 N·m
Weight g: 1700 g

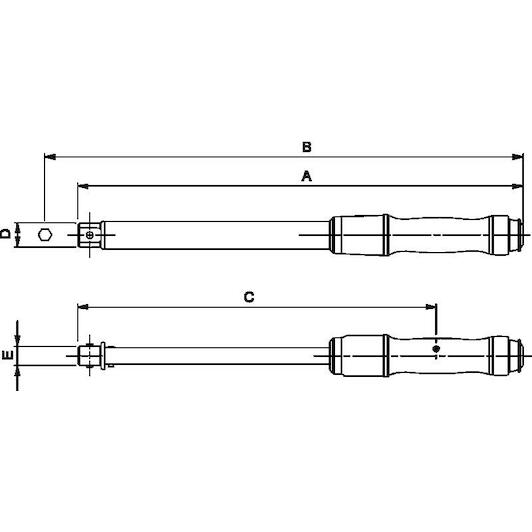

Head width mm (d): 32 mm
Torque range nm: 80-400 N·m
Total length mm (a): 664 mm
Length and width of square mm: 14 mm
Measuring range lb.ft: 60-300 lbf·ft
Width of square mm: 14 mm
Norm: ISO6789-2:2017

Brand BAHCO
08080049
EAN 7314150415724
Supplier number BAHCO 74W14-400

Frequently asked questions about this product

Answered by specialists

What is the adjustable torque range of this wrench?: The adjustable torque range is 80 to 400 Nm.
What drive size does the Bahco 74W14-400 use for inserts?: It features a 14 x 18 mm rectangular female drive for interchangeable head inserts.
Can this torque wrench be used for clockwise and anticlockwise tightening?: Yes, turning the interchangeable insert over allows controlled tightening in both directions.
How does the wrench signal that the set torque is reached?: The click mechanism provides both a tactile and an audible click when torque is reached.
Is this tool insulated for electrical live working?: No, this torque wrench is not VDE certified and not insulated.
