Product description:
- Torque spanner with double scale and insert change system
Features:
- Durable mechanism with more than 100,000 cycles within accuracy standard

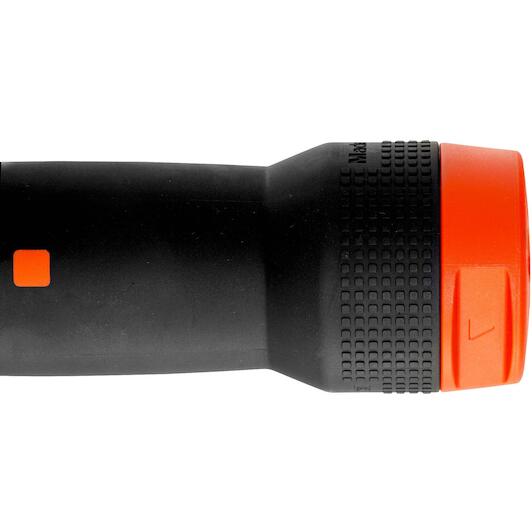

- Quick scale adjustment making adjustment less effort
- TIME STRIP Visual indication that the spanner needs to be recalibrated with graduations of 3, 6, 9 and 12 months

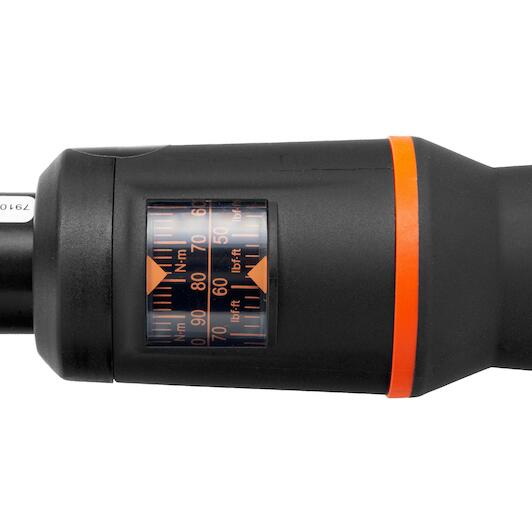

- Large dual scale inNm/ft.lb (15 and 25Nm spanner sizes inNm/in.lb)
- Torque values range from 3 to 400Nm/27 in.lb to 300 ft.lb
- Can be used clockwise or anti-clockwise by reversing the spanner
- Accurate to ±3% of measured value, better than the requirements of ISO6789-1:2017
- Click system activates a tangible and audible signal

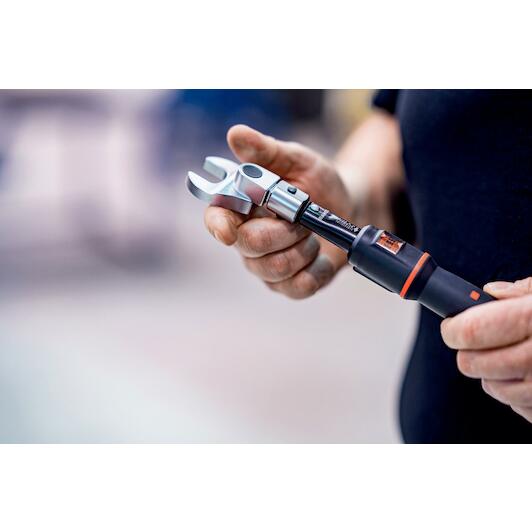

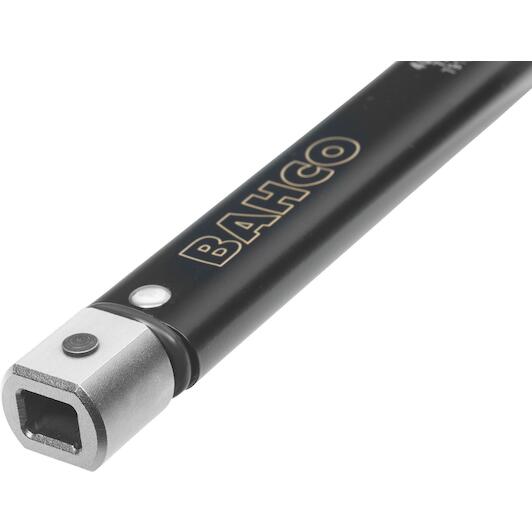

- 9 x 12 and 14 x 18 female rectangular interchangeable heads, can be used clockwise or anti-clockwise
- Centre of handle or calibration force point marked on handle

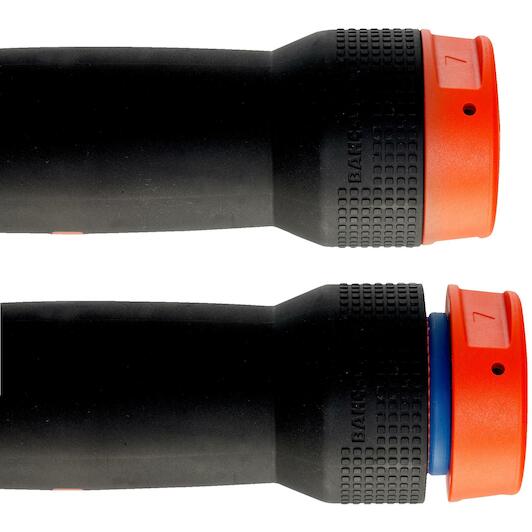

- Lock/unlock button with blue ring on the inside alerting the user when the key is unlocked
- All in semi-transparent square tube with eurohole hanger
- All keys come with manufacturer's declaration of conformity, traceable to international standards
- ISO 6789
- Made in the United Kingdom
Key features according to our expert
-
Min. tightening torque: 60 Nm
-
Drive profile size: 9 x 12 mm
-
VDE approved: No
-
With safety colour code 1000V: Not applicable
-
ESD: No
-
Adjustable torque range: 60-300 Nm
-
Max. tightening torque: 300 Nm
Specifications / All features
-
Brand:
BAHCO
-
03091142
-
EAN:
7314150415717
-
Supplier number:
BAHCO 74W14-300
- Min. tightening torque
- 60 Nm
- Drive profile size
- 9 x 12 mm
- Vde approved
- No
- With safety colour code 1000v
- Not applicable
- Esd
- No
- Adjustable torque range
- 60-300 Nm
- Max. tightening torque
- 300 Nm
- Weight kg
- 1.200 kg
- Diameter mm
- 14x18 mm
- Weight g
- 1200 g

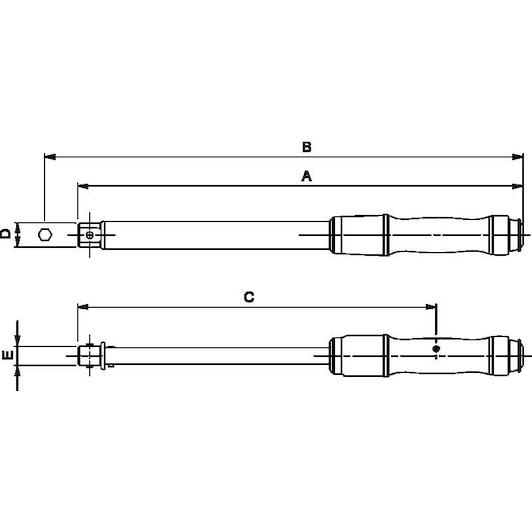

- Head width mm (d)
- 34 mm
- Torque range nm
- 60-300 N·m
- Total length mm (a)
- 570 mm
- Length and width of square mm
- 18 mm
- Measuring range lb.ft
- 45-220 lbf·ft
- Width of square mm
- 14 mm
- Norms
- ISO6789-2:2017
- Scale nm
- 2 N·m
