bahco_4614_2
BAHCO

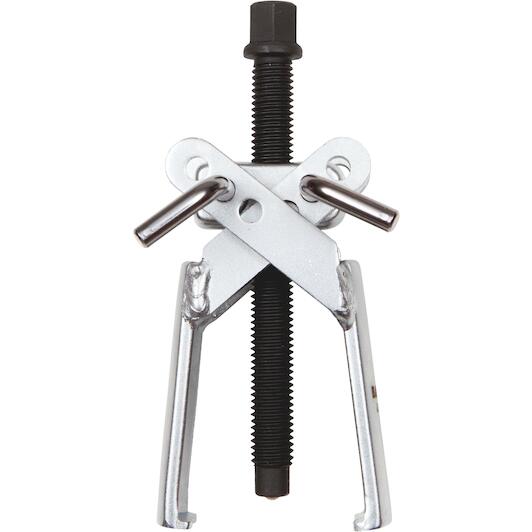

BAHCO 4614-2 tractor galvanised two cross arms 85-120 mm

Recommended Retail Price €217.80
133.20 tax incl.
€110.08 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/05/2026
each

Product description:

  • Extractor: Scissor type
  • Finish: Galvanised, induction hardened and wear-resistant spindle
  • Material: special steel
  • Application: Due to the shearing action, the arm´s clamping force is increased when pulling; The claws are pointed at one end which makes this puller well suited for work in confined spaces
  • 4614-1 particularly suited for armature bearings on 3-phase current generators
  • 4614/B: spare body
  • 4614K: pair of spare arms
  • 4543-4532/S: spare spindle
  • 4543-3/S: spare spindle fore 4614-1 (M10x105, SW12, 60 g)
  • 4532-OAB/S: spare spindle for 4614-2 (M14x1.5x135, SW 17, 190 g)
Key features according to our expert
  • Max. width: 140 mm
  • Number of hooks: 2
  • Hydraulical: No
  • Max. height: 120 mm
Specifications / All features
Max. width
140 mm
Number of hooks
2
Hydraulical
No
Max. height
120 mm
Torque range nm
60 N·m
Width extractor mm
10-140 mm
Maximum loading capacity kn
35 kN
Width mm
10-140 mm
Extractor height mm
85-120 mm
Arm length mm
85-120 mm
Maximum loading capacity to
3,5 to
Weight g
900 g
