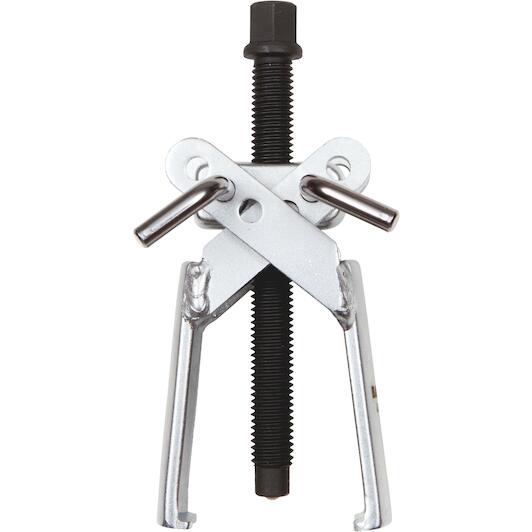

BAHCO 4614-1 tractor galvanised two cross arms 70-85 mm

181.74 tax incl.
€150.20 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

Product description:

  • Extractor: Scissor type
  • Finish: Galvanised, induction hardened and wear-resistant spindle
  • Material: special steel
  • Application: Due to the shearing action, the arm´s clamping force is increased when pulling; The claws are pointed at one end which makes this puller well suited for work in confined spaces
  • 4614-1 particularly suited for armature bearings on 3-phase current generators
  • 4614/B: spare body
  • 4614K: pair of spare arms
  • 4543-4532/S: spare spindle
  • 4543-3/S: spare spindle fore 4614-1 (M10x105, SW12, 60 g)
  • 4532-OAB/S: spare spindle for 4614-2 (M14x1.5x135, SW 17, 190 g)
Key features according to our expert
  • Max. width: 100 mm
  • Number of hooks: 2
  • Hydraulical: No
  • Max. height: 85 mm
Specifications / All features
Max. width
100 mm
Number of hooks
2
Hydraulical
No
Max. height
85 mm
Torque range nm
25 N·m
Width extractor mm
6-100 mm
Maximum loading capacity kn
15 kN
Width mm
6-100 mm
Extractor height mm
70-85 mm
Arm length mm
70-85 mm
Maximum loading capacity to
1,5 to
Weight g
400 g
