What are the clamping range and reach of this puller?

This puller features an external clamping spread of 25 to 80 mm and a maximum reach of 100 mm.

Can this tool be used for internal and external pulling?

Yes, by reversing the position of the arms, you can use it for both internal and external pulling.

What applications is the Bahco 4532-A suitable for?

It is designed for safely removing ball bearings, pulleys, and gears.

Is this puller mechanical or hydraulic?

This two-arm puller is purely mechanical and operates via a threaded spindle without hydraulics.

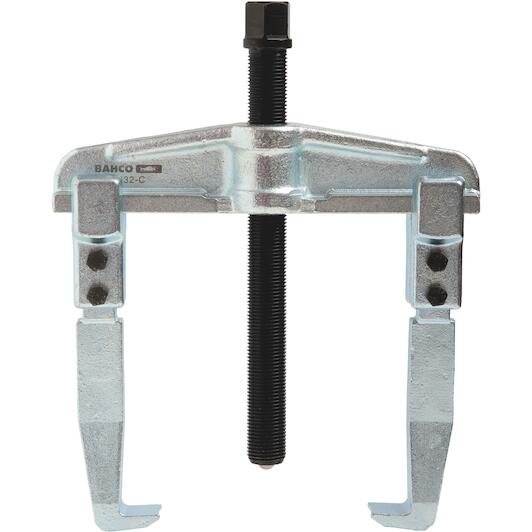

BAHCO 4532-A puller universal galvanised with two arms 25-80 mm 100 mm

Name: BAHCO 4532-A puller universal galvanised with two arms 25-80 mm 100 mm
Brand: BAHCO
SKU: 41851709
Price: 83.95 EUR
Availability: InStock

Supplier number: BAHCO 4532-A | EAN 7314151082109

Recommended Retail Price €137.83

83.95 tax incl.

€69.38 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 05/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Lifetime warranty on Bahco? Or limited in time? Read more about it here.

✆ Talk to a specialist

Alternative to this product

FACOM U.32T2-8 trigger with 2 sliding jaws...

112.95 €175.92

€93.35 excl. VAT

On stock, immediately available.

Dependable pulling with the Bahco puller

Practical benefits

Reversible internal and external use: You can easily reverse the arms to switch between inside and outside pulling applications.
Parallel grip protects components: The wide drop-forged claws maintain a parallel grip to remove bearings, pulleys, and gears without damage.
Rugged galvanised steel construction: Forged from special steel with a galvanised finish, it gives you reliable strength and corrosion resistance.

In a nutshell

The right choise for

With the Bahco 4532-A universal puller, you remove stuck bearings, pulleys, and gears smoothly without damaging shafts or components. Its wide drop-forged claws maintain a parallel grip to deliver controlled mechanical pulling power, eliminating the need for destructive methods such as hammering or heating. By reversing the two arms, you easily switch between internal and external pulling tasks across a clamping spread of 25 to 80 mm and a maximum reach of 100 mm. Built from forged special steel with a galvanised finish, this tool provides dependable resistance against corrosion and wear during demanding maintenance on machinery, motors, or automotive drivetrains.

Product information FAQ

€83.95

In stock - tax incl.

Key features according to our expert

Max. height: 100 mm
Hydraulical: No
Number of hooks: 2
Puller type: Universel puller

Product description:

Extractor: 2 arms
Finish: Galvanised, with induction hardened spindle from 4532-C, D, E, F, G and H
Arms and yokes are drop-forged
Material: special steel
By reversing the arms, the extractor can be used as internal or external
The large claw surfaces offer many advantages for careful and quick removal of pulleys, gears, ball bearings etc.
Arms always grip parallel to each other
4532/B: Spare body
4532K: Pair of spare arms
4532LK: Pair of long spare arms
4532/S: Spare spindle

All Features

Max. height: 100 mm
Hydraulical: No
Number of hooks: 2
Puller type: Universel puller
Torque range nm: 80 N·m
Spare spindle type & size mm: M14x1.5x135 mm
Weight g: 1000 g
Working width claw mm (a): 3 mm
Width claw mm: 20 mm
Width extractor mm: 25-80 mm
Maximum loading capacity kn: 45 kN
Thickness claw mm (b): 13 mm
Extractor height mm: 100 mm
Width 2 mm: 70-130 mm
Length claw mm (c): 25 mm
Width 1 mm: 25-80 mm
Hexagon size mm: 17 mm
Maximum loading capacity to: 4,5 to
Height mm: 100 mm

Brand BAHCO
41851709
EAN 7314151082109
Supplier number BAHCO 4532-A
Warranty Lifetime warranty on Bahco? Or limited in time? Read more about it here.

Frequently asked questions about this product

Answered by specialists

What are the clamping range and reach of this puller?: This puller features an external clamping spread of 25 to 80 mm and a maximum reach of 100 mm.
Can this tool be used for internal and external pulling?: Yes, by reversing the position of the arms, you can use it for both internal and external pulling.
What applications is the Bahco 4532-A suitable for?: It is designed for safely removing ball bearings, pulleys, and gears.
Is this puller mechanical or hydraulic?: This two-arm puller is purely mechanical and operates via a threaded spindle without hydraulics.
