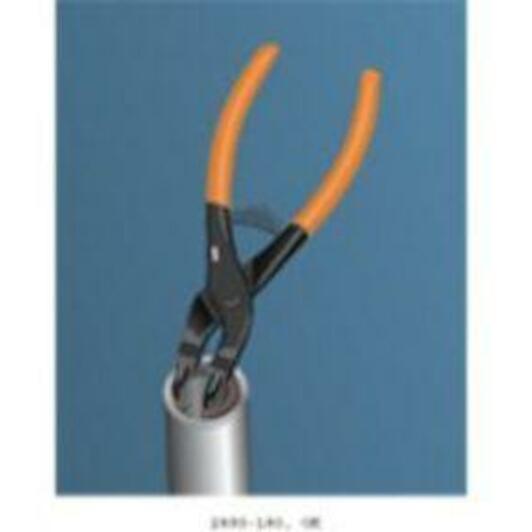

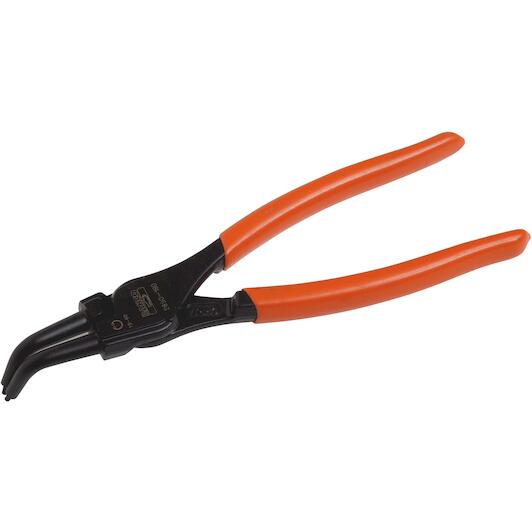

BAHCO 2890-140 inner circlip pliers with 90° bent jaws phosphated 12 mm - 25 mm

Show more features

For min. shaft diameter

12 mm

Overall length

140 mm

Interchangeable heads

No

Version

90°

For max. shaft diameter

25 mm

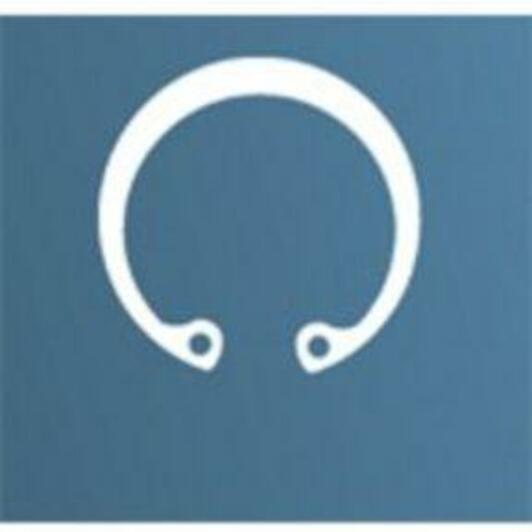

Ring diameter mm

12-25 mm

Weight g

120 g

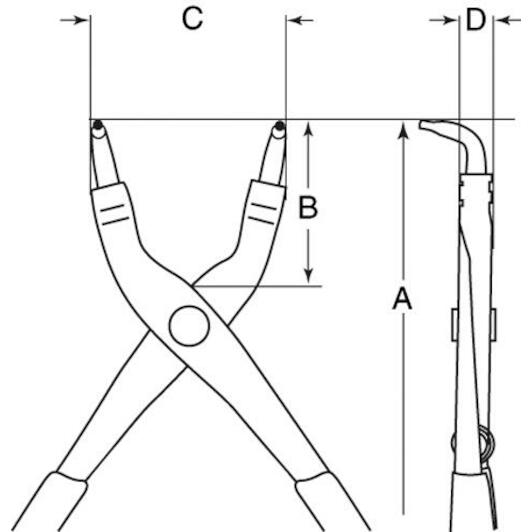

Thickness total mm (d)

9,5 mm

Length mm (a)

140 mm

Total length mm

140 mm

Eyelet diameter mm

1.2 mm

Norms

DIN 5256

Head width mm (c)

19 mm

Jaw height mm (b)

25,7 mm

Head height mm (d)

9,5 mm
