BAHCO

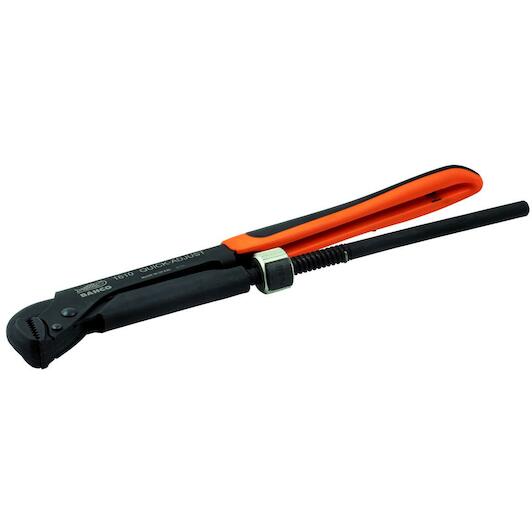

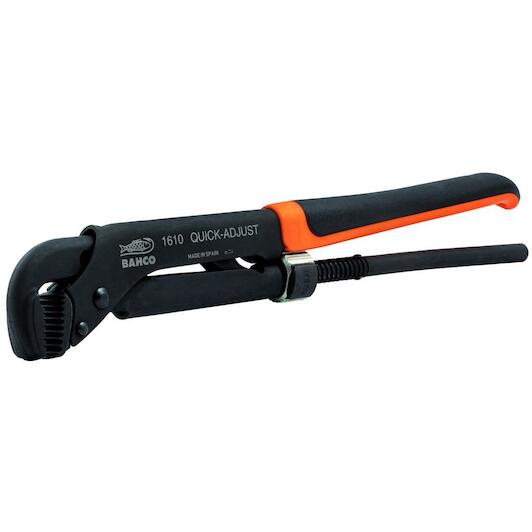

BAHCO 1610 pipe wrench ERGO 90°, Swedish model, Quick adjust, 1", 45 mm

Recommended Retail Price €120.07
65.80 tax incl.
€54.38 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

Product description:

  • ERGO Quick-Adjust pipe pliers

Features:

  • Pipe pliers developed according to the scientific ERGO process
  • Comfortable ERGO two-component handle
  • Ergonomic universal pipe pliers for optimum comfort and increased productivity

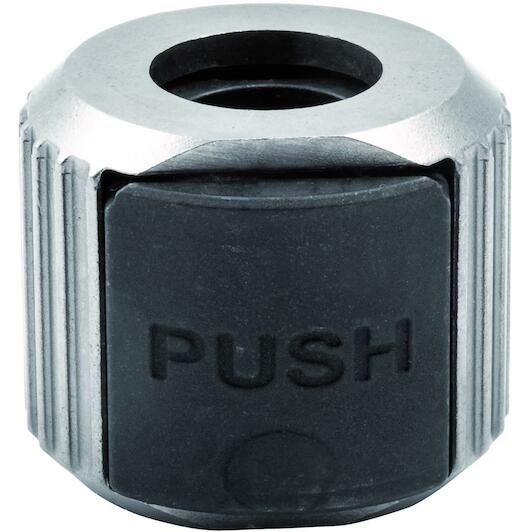

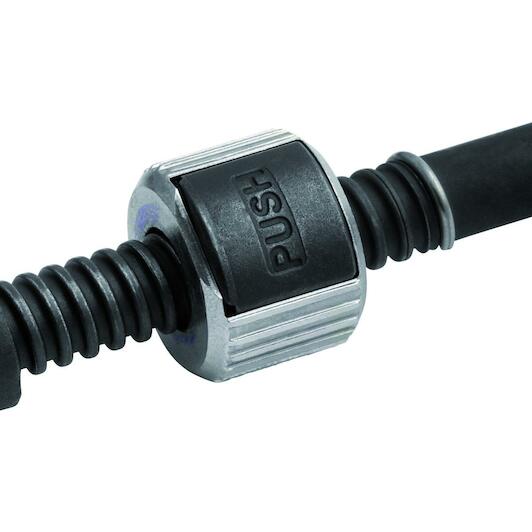

  • The Quick-Adjust nut is 10 times faster than standard pipe pliers, for faster setting and time savings
  • Clever head design makes accessibility in confined spaces much better than many other types of pipe pliers
  • Gripping capacity up to 127 mm (5 ") and jaw opening up to 160 mm (6 1/3")
  • Protection of fingers and hands due to curved design
  • Patented progressive, inward-facing teeth, getting smaller at the back of the jaw and larger at the front of the jaw: for a better grip on varying pipe diameters
  • Anti-rust treated, high-alloy steel with precision induction hardened jaws
  • Standards: DIN 5234
Key features according to our expert
  • Length: 320 mm
  • Max. pipe diameter: 1 inch
  • Non-sparking: No
  • Product Range: Bahco ERGO
Specifications / All features
Length
320 mm
Max. pipe diameter
1 inch
Non-sparking
No
Max opening of jaws mm (b)
45 mm
Weight g
610 g
Thickness jaws mm (d)
18,8 mm
Length mm (a)
320 mm
Total length mm
320 mm
For pipes up to inch
1 in
Thickness jaws inch (d)
0.74 in
Weight oz oz
21,4 oz
Jaw height mm (c)
11,7 mm
Max opening of jaws inch (b)
1,8 in
Length inch (a)
12 1/2 in
Height of jaw inch (c)
0,46 in
Norms
DIN 5234
Product range
Bahco ERGO
