What is the pitch of this roller chain?

This simplex roller chain has a pitch of 25.4 mm (1 inch).

What is the breaking strength of this chain?

The breaking strength of this 16B-1 chain is 60,000 N.

What are the dimensions of the rollers and plates?

The roller diameter is 15.88 mm, inner width is 17.02 mm, and plate height is 21.08 mm.

Which standard does this roller chain follow?

This chain follows the European BS/ISO standard type 16B-1.

What is the weight of the chain per meter?

The weight is 2.8 kg per meter.

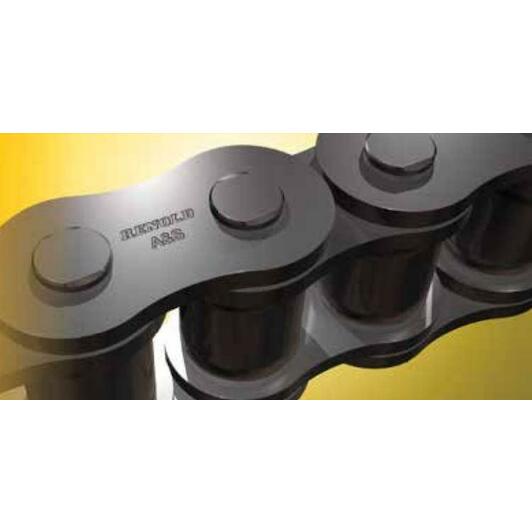

A&S AR16B1X5M simplex chain 1" (16b-1)

Supplier number: A&S AR16B1X5M | EAN 4042279004576

Recommended Retail Price €131.13

64.40 tax incl.

€53.22 excl. VAT (incl. all environmental contributions)

On stock - immediately available

meter

The minimum purchase order quantity for the product is 5.

Ordered before 20:00 - delivered as of 09/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Reliable power transmission with Renold A&S

Practical benefits

High 60000 N breaking load: With a 60000 N breaking load, you easily handle demanding industrial loads and intense peak mechanical stresses.
Superior resistance against wear: The heavy-duty 15,88 mm rollers ensure smooth running and long-lasting drive performance in continuous operations.
Standardized 16B-1 fitment: Thanks to the 25,4 mm pitch, you seamlessly install the chain into your existing BS standard drive setups.

In a nutshell

The right choise for

With the A&s AR16B1X5m simplex roller chain, you ensure dependable, slippage-free mechanical power transmission across manufacturing lines, conveyor systems, and industrial machinery. Engineered with a substantial 60000 n breaking load, it effortlessly withstands heavy tensile forces and sudden shock loads without compromising structural integrity. This 16B-1 chain features a standard 25.4 mm (1 inch) pitch, durable 15.88 mm diameter rollers, and a solid weight of 2.8 kg/m, allowing direct drop-in integration into your existing bs standard drives. It delivers the strength and precision maintenance professionals and machine builders need for trouble-free operation.

Product information FAQ

€64.40

In stock - tax incl.

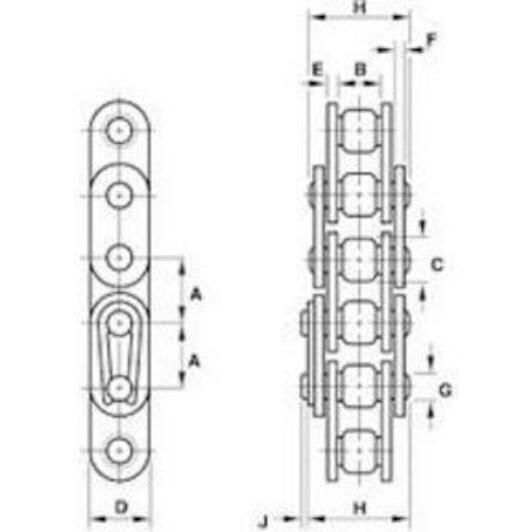

Key features according to our expert

Pitch: 1 inch; 25,4 mm
Weight (kg/m): 2,8 kg/m
Product line: Renold A&S
Type (ISO/ANSI): 16B-1
Height: 2,2
Inside width: 17,02 mm
Version (chain): Simplex
Breaking strength: 60000 N
Length (pin): 34,9 mm
Diameter (pin): 8,28 mm
Thickness (outer plate): 3,1 mm
Thickness (inner plate): 4,12 mm
Plate height: 21,08 mm
Diameter (roller): 15,88 mm

Product description:

The Renold A&S roller chain has long been known for its high quality, affordability, reliability and performance.
The chain has gained a strong reputation for its excellent wear resistance, high fatigue resistance and durability.
These factors have contributed to Renold A&S becoming the most widely used chain brand in Europe.
The Renold A&S chain is available with European (BS) and ANSI specifications and with a full range of standard M, K and extended bearing pin attachments.
The chain can even be supplied with a lubricant based on the customer's specific requirements.
Available in sizes with pitch ranging from 4 mm to 2.5 inches
Solid extruded bushing
Solid extruded roller
Plates with wider blades
Hardened and glass bead blasted blades
Comprehensive European (BS) and ANSI range
Wide range of fasteners available
Lubricant of choice to meet customer requirements

All Features

Pitch: 1 inch; 25,4 mm
Weight (kg/m): 2,8 kg/m
Product line: Renold A&S
Type (iso/ansi): 16B-1
Height: 2,2
Inside width: 17,02 mm
Version (chain): Simplex
Breaking strength: 60000 N
Length (pin): 34,9 mm
Diameter (pin): 8,28 mm
Thickness (outer plate): 3,1 mm
Thickness (inner plate): 4,12 mm
Plate height: 21,08 mm
Diameter (roller): 15,88 mm

Brand A&S
03010006
EAN 4042279004576
Supplier number A&S AR16B1X5M

Frequently asked questions about this product

Answered by specialists

What is the pitch of this roller chain?: This simplex roller chain has a pitch of 25.4 mm (1 inch).
What is the breaking strength of this chain?: The breaking strength of this 16B-1 chain is 60,000 N.
What are the dimensions of the rollers and plates?: The roller diameter is 15.88 mm, inner width is 17.02 mm, and plate height is 21.08 mm.
Which standard does this roller chain follow?: This chain follows the European BS/ISO standard type 16B-1.
What is the weight of the chain per meter?: The weight is 2.8 kg per meter.
