What is the pitch of this roller chain?

This simplex roller chain has a pitch of 3/8 inch (9.525 mm).

What is the breaking strength of this chain?

This 06B-1 type chain has a breaking strength of 8900 N.

What are the roller diameter and inside width?

The roller diameter is 6.35 mm and the inner width measures 5.72 mm.

How much does this roller chain weigh per meter?

The weight of this simplex chain is 0.39 kg/m.

What is the pin diameter of this chain?

The chain has pins with a diameter of 3.28 mm and a pin length of 12.5 mm.

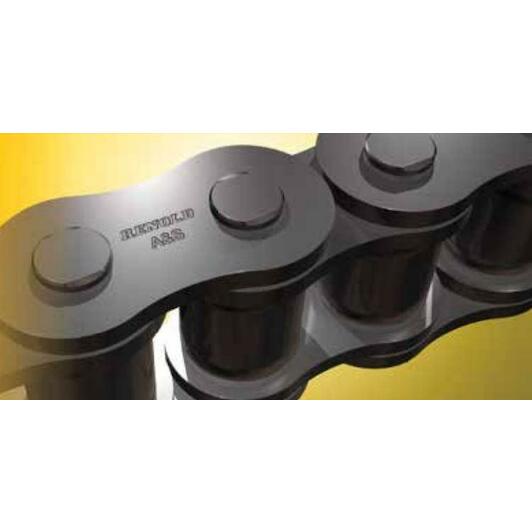

A&S AR06B1X5M simplex chain 3/8" (06b-1)

Supplier number: A&S AR06B1X5M | EAN 4042279003739

Recommended Retail Price €57.51

28.20 tax incl.

€23.31 excl. VAT (incl. all environmental contributions)

On order: delivered from 17/10/2026

meter

The minimum purchase order quantity for the product is 5.

Ordered before 20:00 - delivered as of 17/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Smooth power transmission for machinery

Practical benefits

High mechanical breaking load: With a breaking strength of 8900 N, you reliably transfer substantial drive forces without risk of sudden chain failure.
Superior resistance to wear: Due to hardened pins and solid rollers, you minimize contact stress and extend operating intervals between maintenance routines.
Standardized BS 06B-1 dimensions: Featuring a 9.525 mm pitch, you effortlessly fit this simplex chain onto matching industrial sprockets and drives.

In a nutshell

The right choise for

With the Renold A&s 06B-1 AR06B1X5m simplex roller chain, you ensure reliable, slip-free power transmission across your machinery and industrial drive systems. Whether you are replacing a worn chain on a conveyor or maintaining automated production equipment, this chain delivers dependable performance. With a breaking load of 8900 N, it handles substantial mechanical torque smoothly and safely. The standardized bs 9.525 mm (3/8 inch) pitch, 6.35 mm roller diameter, and 5.72 mm inside width guarantee a precise fit on compatible sprockets. Featuring hardened pins and solid rollers, it maximizes wear resistance and keeps your equipment running smoothly with minimal maintenance.

Product information FAQ

€28.20

tax incl.

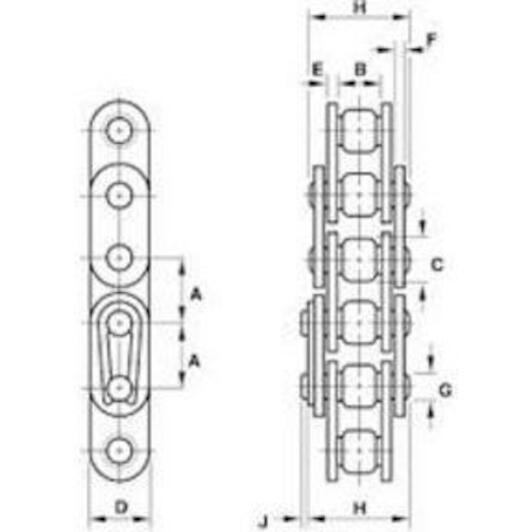

Key features according to our expert

Pitch: 3/8 inch; 9,525 mm
Weight (kg/m): 0,39 kg/m
Product line: Renold A&S
Type (ISO/ANSI): 06B-1
Height: 1,3
Inside width: 5,72 mm
Version (chain): Simplex
Breaking strength: 8900 N
Length (pin): 12,5 mm
Diameter (pin): 3,28 mm
Thickness (outer plate): 1,04 mm
Thickness (inner plate): 1,29 mm
Plate height: 8,2 mm
Diameter (roller): 6,35 mm

Product description:

The Renold A&S roller chain has long been known for its high quality, affordability, reliability and performance.
The chain has gained a strong reputation for its excellent wear resistance, high fatigue resistance and durability.
These factors have contributed to Renold A&S becoming the most widely used chain brand in Europe.
The Renold A&S chain is available with European (BS) and ANSI specifications and with a full range of standard M, K and extended bearing pin attachments.
The chain can even be supplied with a lubricant based on the customer's specific requirements.
Available in sizes with pitch ranging from 4 mm to 2.5 inches
Solid extruded bushing
Solid extruded roller
Plates with wider blades
Hardened and glass bead blasted blades
Comprehensive European (BS) and ANSI range
Wide range of fasteners available
Lubricant of choice to meet customer requirements

All Features

Pitch: 3/8 inch; 9,525 mm
Weight (kg/m): 0,39 kg/m
Product line: Renold A&S
Type (iso/ansi): 06B-1
Height: 1,3
Inside width: 5,72 mm
Version (chain): Simplex
Breaking strength: 8900 N
Length (pin): 12,5 mm
Diameter (pin): 3,28 mm
Thickness (outer plate): 1,04 mm
Thickness (inner plate): 1,29 mm
Plate height: 8,2 mm
Diameter (roller): 6,35 mm

Brand A&S
03010002
EAN 4042279003739
Supplier number A&S AR06B1X5M

Frequently asked questions about this product

Answered by specialists

What is the pitch of this roller chain?: This simplex roller chain has a pitch of 3/8 inch (9.525 mm).
What is the breaking strength of this chain?: This 06B-1 type chain has a breaking strength of 8900 N.
What are the roller diameter and inside width?: The roller diameter is 6.35 mm and the inner width measures 5.72 mm.
How much does this roller chain weigh per meter?: The weight of this simplex chain is 0.39 kg/m.
What is the pin diameter of this chain?: The chain has pins with a diameter of 3.28 mm and a pin length of 12.5 mm.
