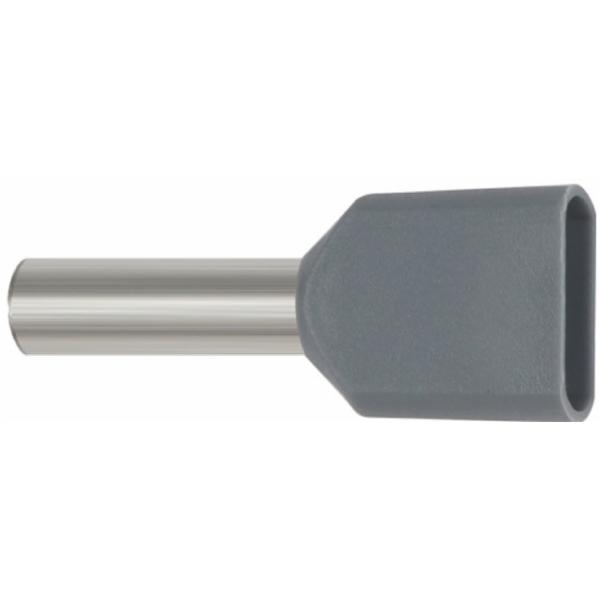

Wiha Twin wire end ferrules with plastic collar 50 units, colour code 2 (DE) & DIN (43948)
Features:
Increases your process reliability: Consistently high processing quality for permanent safe contact.
Increases your safety: Cable breakages prevented thanks to protected individual wires.
Makes handling easier: Quick, easy cable insertion thanks to funnel sleeve.
Increases your safety: High thermal resistance up to 105 °C.
Application: Ideally suited for the connection of thin wire leads, especially terminals. Special sleeve for two-wire lead connections.
It is especially important for electricians to ensure that individual wires do not get crushed or misdirected when connecting fine-wired lines. If they do, there is a risk of cable breaks or even short circuits, which can potentially cause a fire. Wire-end sleeves can prevent such risks and provide reliable contacts, thus ensuring things work safely for the long term. The conical-shaped collar makes it easier to insert wires into the sleeve. The sleeve also makes it easier to insert the cable into the terminal. The twin wire-end sleeves are specifically designed for two-conductor connection. The wire-end sleeves are stored in a dispenser for easy use with a latching function to prevent unintentional opening. Wiha halogen-free wire-end sleeves offer heat resistance up to 105 °C. They are manufactured to DIN 46228 specifications, but feature the German colour code (Code 2).
