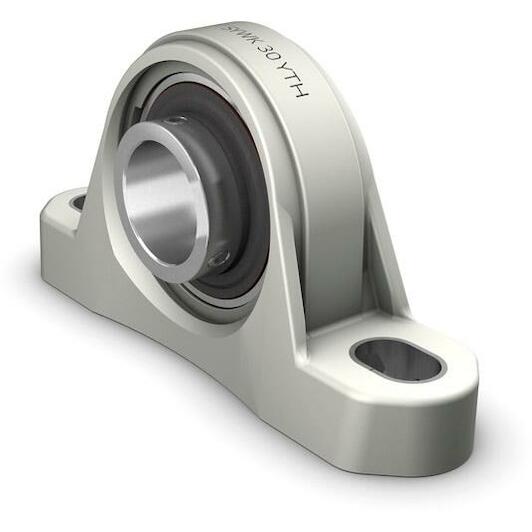

SKF SYWK 40 YTH ball bearing unit 40 mm

Show more features

Shaft diameter

40 mm

Bore type

Cylindrical

Material (bearing housing)

Composite

Material (bearing)

Stainless steel

Material, bearing

Stainless steel

Sealing, bearing

Seal and flinger on both sides

Sealing type

Contact, multiple

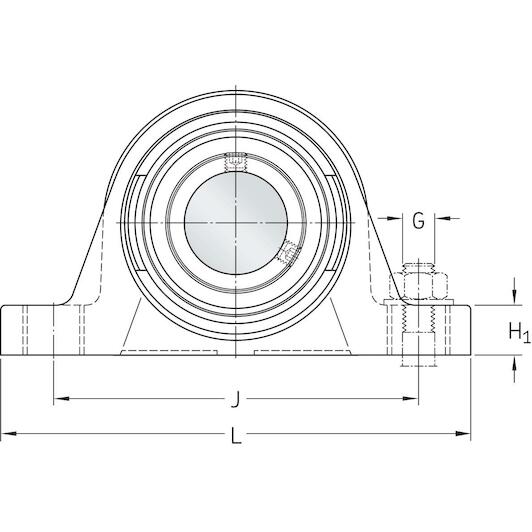

Centre distance between bolt holes

136 mm

Centre height (pillow block)

49.2 mm

Lubricant

Grease

Number of bolt holes for fasteners

2

Basic static load rating

19 kN

Material, housing

Composite for the SKF Food Line

Bearing width, total

49.2 mm

Retaining feature, inner ring

Set screws

Rubber seating ring

Without

Sealing, unit

Optional end cover

Grease fitting

Without

Note

Limiting speed with shaft tolerance h6

Limiting speed

2,800 r/min

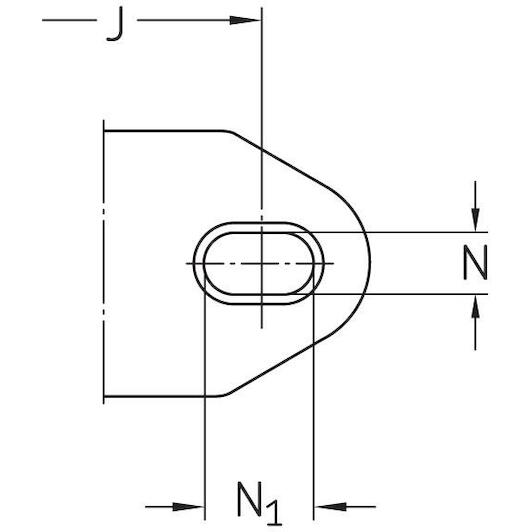

Fastening bolt hole type

Plain

Relubrication hole

Without

Housing overall width

48 mm

Basic dynamic load rating

24.7 kN

Coating

Without

Housing type

Pillow block
