Self leveling, height-adjustable and re-adjustable mounting chock with protection against corrosion

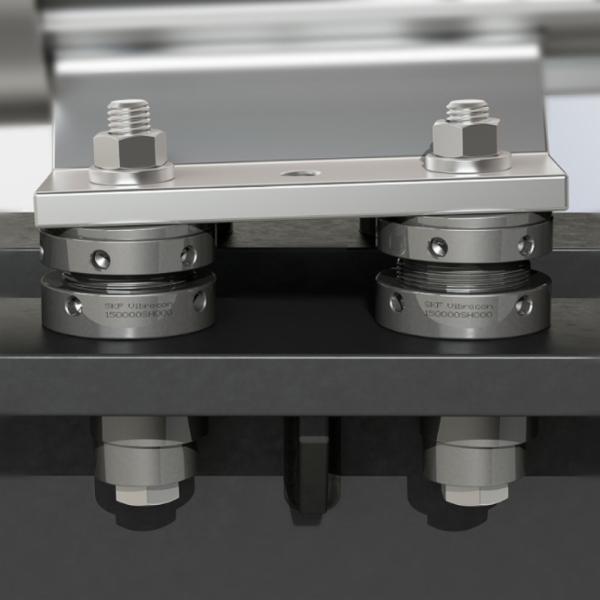

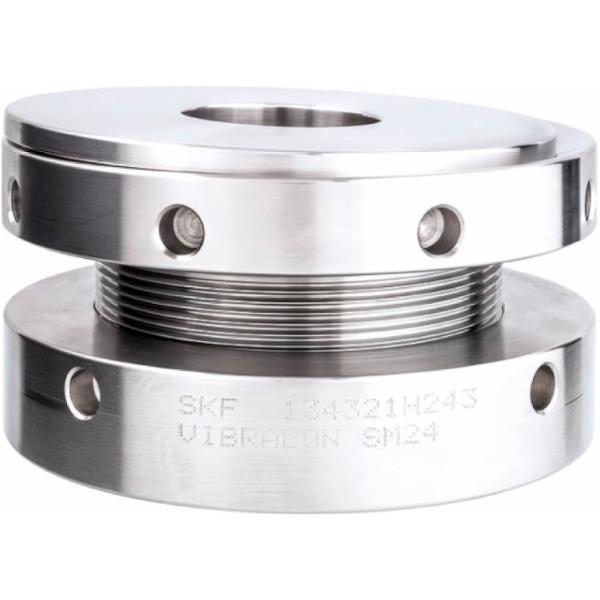

SKF Vibracon chocks are machinery mounting chocks that are easily and accurately adjusted.
The chocks accommodate the angular difference between machine and the mounting base without expensive machining of the base or extra work of installing epoxy resin chocks
The self-leveling capability combined with the height adjustment feature eliminates the possibility of a soft foot in the production line through the life cycle of the machinery
In harsh conditions, were requirements cannot be met by carbon steel surface treated chocks, the stainless steel chocks will be the solution
Mating surfaces are treated with additives to avoid seizing of the parts when rotated
Features:
Suitable for M30 - M36 bolts (1 1/8" - 1 3/8")
Eliminates soft foot
Optimally corrosion resistant
Highest possible safety for your installation
Easy installation without prior knowledge
Proven solution for many applications in a variety of industries
