SKF

SKF SM 16 -CS Vibracon adjustable foundation element type SM 16 carbon steel

This article is not available

Product description:

  • SKF Vibracon SM 16 Carbon Steel
    • Self-leveling, height-adjustable and re-adjustable mounting chock

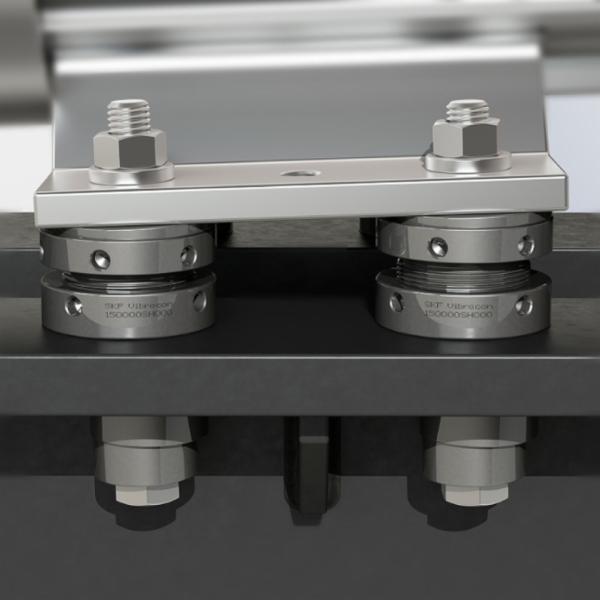

    • SKF Vibracon chocks are machinery mounting chocks that are easily and accurately adjusted.
    • The chocks accommodate the angular difference between machine and the mounting base without expensive machining of the base or extra work of installing epoxy resin chocks
    • The self leveling capability combined with the height adjustment feature eliminates the possibility of a soft foot in the production line through the life cycle of the machinery

    Features:

    • Suitable for M16 - M20 bolts (5/8" - 3/4")
    • Eliminates soft foot
    • Highest possible safety for your installation
    • Easy installation without prior knowledge
    • Proven solution for many applications in a variety of industries
Key features according to our expert
  • Outer diameter: 80 mm
  • Height: 40 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316575880231
  • Supplier number: SKF SM 16 -CS
Outer diameter
80 mm
Height
40 mm
Minimum reduced height (mp_)
26 mm
Maximum height (mp_)
45 mm
Minimum height (mp_)
35 mm
Nominal height (mp_)
40 mm
Tightening torque for maximum bolt size (mp_)
270 N-m
Tightening torque for minimum bolt size (mp_)
215 N-m
Rush (mp_)
1.5 mm
Outer diameter (mp_)
80 mm
Corrosion resistance (mp_)
O
Minimum size of bolt (mp_)
M16
Product weight (mp_)
1,175 kg
Maximum bolt size (mp_)
M18
Maximum extension height (mp_)
80 mm
Machine load (mp_)
15 kN
Spigot diameter (mp_)
6 mm
Bolt hole diameter (mp_)
21 mm
