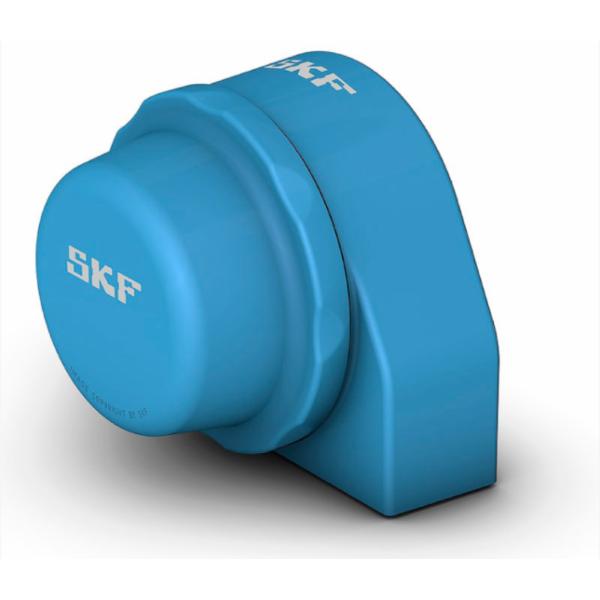

SKF P2BTC 100-CPSS-DFH ball bearing unit 25.4 mm

Show more features

Shaft diameter

25,4 mm

Product line

Blue Line

Material (bearing housing)

Composite

Bore type

Cylindrical

Material (bearing)

Stainless steel

Material, bearing

Stainless steel

Sealing, bearing

Seal on both sides and flinger on one side

Retaining feature, inner ring

Set screws

Rubber seating ring

Without

Centre height (pillow block)

36.5 mm

Lubricant

Grease

Number of bolt holes for fasteners

2

Basic static load rating

7.8 kN

Material, housing

Composite for the SKF Food Line

Bearing width, total

27.3 mm

Sealing type

Contact, gutter

Sealing, unit

End cover and back seal

Centre distance between bolt holes

51 mm

Grease fitting

Without

Limiting speed

700 r/min

Fastening bolt hole type

Threaded

Relubrication hole

Without

Housing overall width

27 mm

Basic dynamic load rating

11.9 kN

Coating

Without

Housing type

Pillow block
