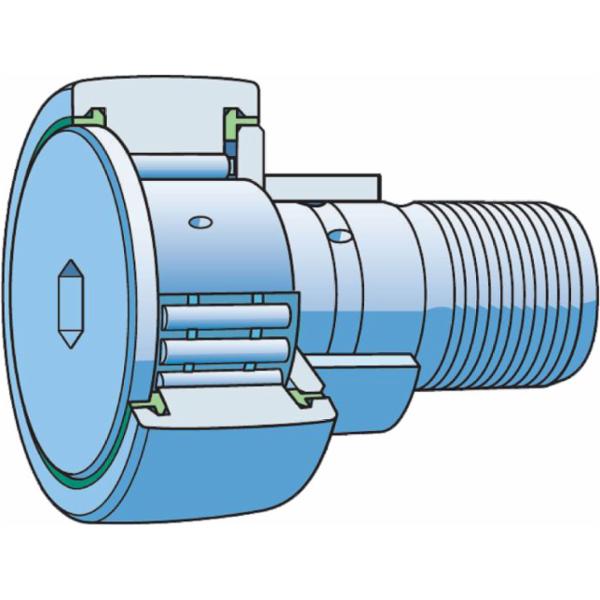

SKF KRE 62 PPA cam roller with eccentric collar, integrated seal and relubrication 62 mm

Show more features

Outer diameter

62 mm

Stud diameter

24 mm

Width

80 mm

Tolerance class

Other

Rolling elements

Needle rollers

Functional outside diameter

62 mm

Material, bearing

Bearing steel

Feature for tightening

Hexagonal recess

Cage

With

Sealing type

Labyrinth

Width, outer ring

29 mm

Lubricant

Grease

Relubrication feature

Centre of each stud end

Basic static load rating

44 kN

Radial internal clearance

Between C2 and CN

Number of flanges, outer ring

2

Sealing

Seal on both sides

Outer ring profile

Crowned

Limiting speed

2,400 r/min

Number of rows

1

Basic dynamic load rating

24.6 kN

Coating

Without

Length

80 mm

Stud alignment

Centric stud with eccentric collar
