skf-kre-40-ppa-kre-40-ppa

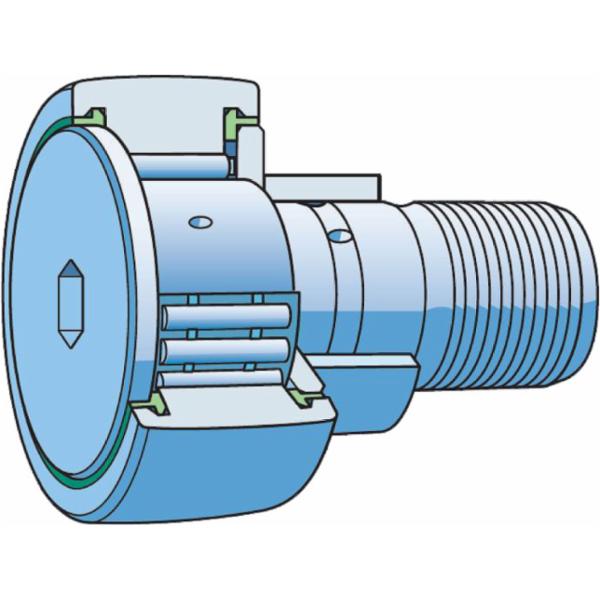

SKF KRE 40 PPA cam roller with eccentric collar, integrated seal and relubrication 40 mm

SKF
Supplier number: SKF KRE 40 PPA | EAN 7316571594880
This product has been discontinued.

✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Outer diameter: 40 mm
  • Stud diameter: 18 mm
  • Width: 58 mm

All Features

Outer diameter
40 mm
Stud diameter
18 mm
Width
58 mm
Tolerance class
Other
Rolling elements
Needle rollers
Functional outside diameter
40 mm
Material, bearing
Bearing steel
Feature for tightening
Hexagonal recess
Cage
With
Sealing type
Labyrinth
Width, outer ring
20 mm
Lubricant
Grease
Relubrication feature
Centre of each stud end
Basic static load rating
14.6 kN
Radial internal clearance
Between C2 and CN
Number of flanges, outer ring
2
Sealing
Seal on both sides
Outer ring profile
Crowned
Limiting speed
3,400 r/min
Number of rows
1
Basic dynamic load rating
10.5 kN
Coating
Without
Length
58 mm
Stud alignment
Centric stud with eccentric collar
  • Brand SKF
  • EAN 7316571594880
  • Supplier number SKF KRE 40 PPA
