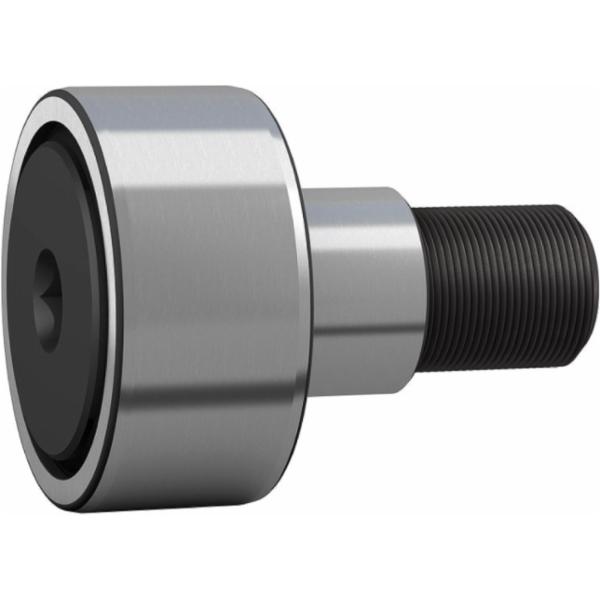

SKF KRE 35 PPA cam roller with eccentric collar, integrated seal and relubrication 35 mm - KRE 35 PP

Show more features

Outer diameter

35 mm

Stud diameter

20 mm

With eccentric collar

Yes

Number of rows

1

Outer ring profile

Spherical

Width

52,1 mm

Width, outer ring

18 mm

Basic static load rating

12.9 kN

Relubrication feature

Centre of each stud end

Lubricant

Grease

Feature for tightening

Hexagonal recess

Sealing type

Contact

Cage

With

Tolerance class

Other

Material, bearing

Bearing steel

Functional outside diameter

35 mm

Rolling elements

Needle rollers

Radial internal clearance

Between C2 and CN

Sealing

Seal on both sides

Number of flanges, outer ring

2

Limiting speed

3,800 r/min

Basic dynamic load rating

8.58 kN

Coating

Without

Length

52.1 mm

Stud alignment

Centric stud with eccentric collar
