Supplier number:

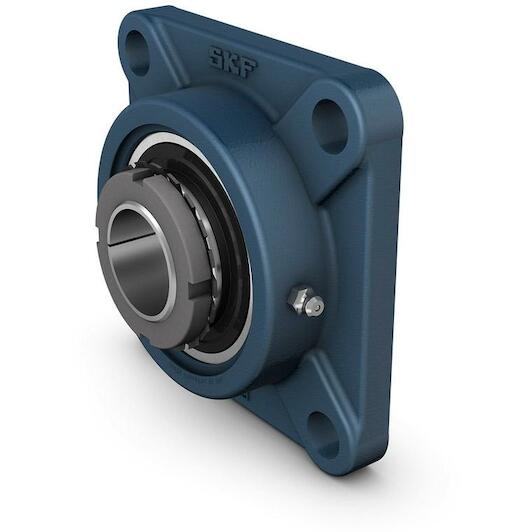

SKF FYJ 60 KF
|
EAN
7316570092400
Product information
Key features according to our expert
- Shaft diameter: 55 mm
- Split: No
- Material (bearing housing): Stainless steel
- Material (bearing): Steel
- High temperature: No
- Bore type: Tapered
- Shape (bearing housing): Square
Documents
All Features
- Shaft diameter
- 55 mm
- Split
- No
- Material (bearing housing)
- Stainless steel
- Material (bearing)
- Steel
- High temperature
- No
- Bore type
- Tapered
- Shape (bearing housing)
- Square
- Lubricant
- Grease
- Bearing width, total
- 42.4 mm
- Material, housing
- Cast iron
- Basic static load rating
- 36 kN
- Number of bolt holes for fasteners
- 4
- Sealing, bearing
- Seal and flinger on both sides
- Rubber seating ring
- Without
- Sealing type
- Contact, standard
- Centre distance between bolt holes
- 143 mm
- Material, bearing
- Bearing steel
- Flanged housing type
- Square
- Retaining feature, inner ring
- Adapter sleeve
- Limiting speed
- 3,400 r/min
- Grease fitting
- With
- Sealing, unit
- Without
- Width, total
- 62.8 mm
- Fastening bolt hole type
- Plain
- Relubrication hole
- With
- Housing overall width
- 48 mm
- Basic dynamic load rating
- 52.7 kN
- Coating
- Without
- Housing type
- Flanged
- Brand SKF
- EAN 7316570092400
- Supplier number SKF FYJ 60 KF
