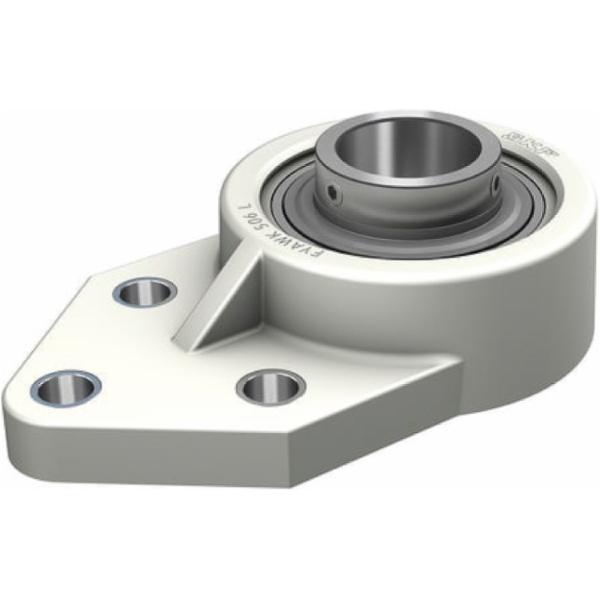

SKF FYAWK 20 LTA Y-bearing unit with flange 3-bolt support, d 20 mm, A 26.5 mm, J

Show more features

Shaft diameter

20 mm

Split

No

Material (bearing housing)

Composite

Material (bearing)

Steel

High temperature

No

Bore type

Cylindrical

Shape (bearing housing)

Triangle (one-sided)

Lubricant

Grease

Material, housing

Composite for the SKF Food Line

Basic static load rating

6.55 kN

Number of bolt holes for fasteners

3

Material, bearing

Bearing steel

Rubber seating ring

Without

Sealing type

Contact, multiple

Sealing, bearing

Seal and flinger on both sides

Retaining feature, inner ring

Set screws

Flanged housing type

3-bolt bracket

Bearing width, total

31 mm

Limiting speed

5,000 r/min

Grease fitting

Without

Note

Limiting speed with shaft tolerance h6

Sealing, unit

Optional end cover

Fastening bolt hole type

Plain

Relubrication hole

Without

Housing overall width

26.5 mm

Basic dynamic load rating

12.7 kN

Coating

Zinc-coated bearing

Housing type

Flanged
