PHANTOM

PHANTOM 333600500 HSS-E shank cutter 2-cutter DIN 844-B short' helix angle 50° 5x13mm

This article is not available

Product Description:

  • Phantom HSS-E 3 Flute End Mill DIN 844 B helix 50°
  • DIN 844 B, helix 50°, Weldon shank (DIN 1835-B), in M42 steel, for a very smooth surface, for general use
Key features according to our expert
  • Diameter: 5 mm
  • Milling type: Finger cutter
  • Shank size (milling cutter): 6 mm
  • Cutting length: 13 mm
Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563337959
  • Supplier number: PHANTOM 333600500
Diameter
5 mm
Milling type
Finger cutter
Shank size (milling cutter)
6 mm
Cutting length
13 mm
Spiral angle
50°
Tool equipment
HSS-E
Number of cutting edges (z)
2

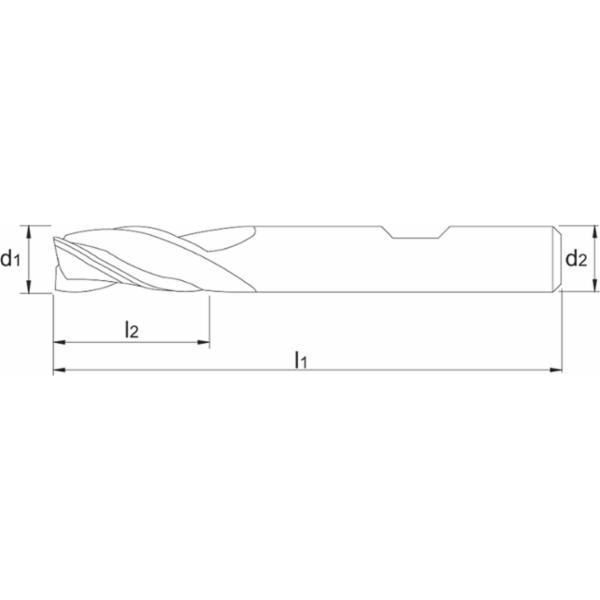

Diameter ø (d1)
5 mm
Spiral length (l2)
13 mm
Tolerance d2 (tol. d2)
h6
Cooling channel
No
Surface
Polished blank
Tolerance d1 (tol. d1)
0,00/+0,048
Shaft ø (d2)
6 mm
Shaft type
Weldon (DIN 6535-HB)
Standard
DIN 844-B
Overall length (l1)
57 mm
