PHANTOM

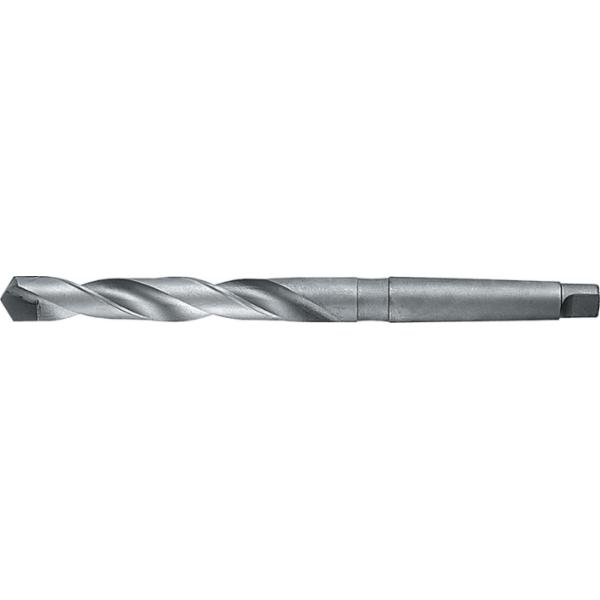

PHANTOM 126003000 HM-tip spiral drill bit DIN 345 MK 3 - 30 mm

This article is not available

Product Description:

  • Phantom Carbide Tipped Twist drill DIN 345 MT
  • DIN 345, Morse Taper shank, cutting angle 3°, point angle 120°, Carbide Tipped, problem solver
Key features according to our expert
  • Diameter: 30 mm
  • Drill bit type: Metal drill bit
  • Overall length: 296 mm
  • Shank size: MK3
  • Shank type: Morse taper - external
  • Cutting length: 175 mm
Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563319849
  • Supplier number: PHANTOM 126003000
Diameter
30 mm
Drill bit type
Metal drill bit
Overall length
296 mm
Shank size
MK3
Shank type
Morse taper - external
Cutting length
175 mm
Spiral type
Type N

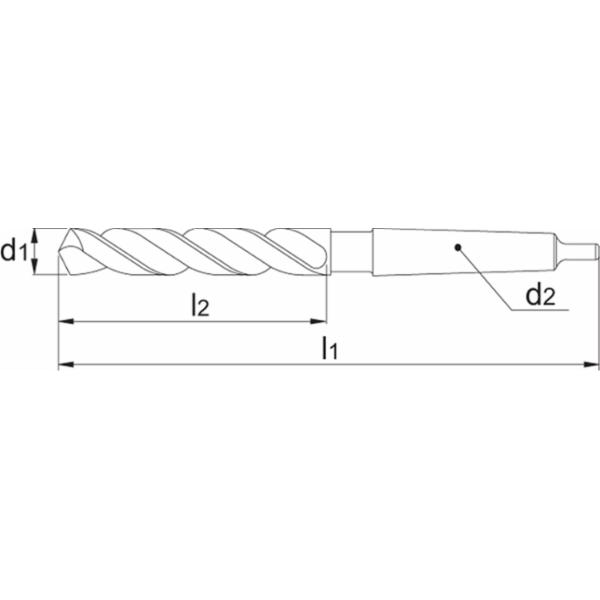

Overall length (l1)
296 mm
Tool equipment
HM tip
Spiral length (l2)
175 mm
Drilling diameter (d1)
30 mm
Cooling channel
No
Recording (d2)
MK 3
Cutting direction
Right
Surface
Polished blank
Tolerance d1 (tol. d1)
h8
Sharpening
Facet
Shaft type
Morse taper
Standard
DIN 345
Top corner
120°
