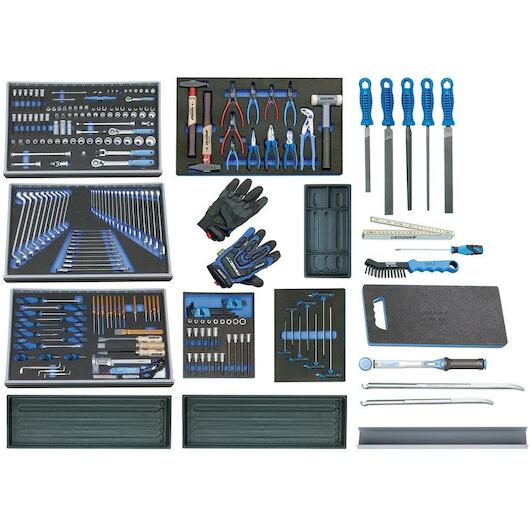

GEDORE S 2005 AUTO 257-piece tool set - 2055066

Scope of delivery

Module 2005 CT4-8000

• Assembly pliers for internal locking rings, No. 8000 A 1, straight, 10-25 mm, 19-60 mm
• Circlip Pliers for internal locking rings, no. 8000 A 2, bent, 19-60 mm, 12-25 mm
• Circlip Pliers for external clamping collars, No. 8000 J 1, straight, 19-60 mm
• Assembly pliers for external locking washers, No. 8000 J 21, curved, 19-60 mm
• Adjustable Nut Pliers, no. 142 10 JC, 10 15-way adjustable, 2C handle
• Telephone pliers, no. 8132-160 JC, 160 mm 2C handle
• Diagonal Cutter Pliers POWER, no. 8316-160 JC, 160 mm 2C grip
• Combination pliers POWER, no. 8250-180 JC, 180 mm 2C grip
• Bench hammer ROTBAND-PLUS with hickory handle, no. 600 H-300 H-500, 300 500 g
• Impact-absorbing nylon hammer, no. 248 ST-40, head dia. 40 mm

Module 2005 CT4-U-20

• 1/4" socket spanners, no. 20, 6-kt SW 5.5 6 7 8 9 10 11 12 13 14 mm
• 1/4" long handle ratchet, no. 2093 U-3 T 140 mm Reversible ratchet 1/4", no. 2093 U-20 127 mm
• 1/4" extension, no. 2090-4 -6, 97 148 mm
• 1/4" cardan joint, no. 27 mm
• 3/8" socket spanners, UD profile, no. D 30, SW 8 9 10 11 12 13 14 15 16 17 18 19 21 22 mm
• 3/8" socket spanners, external TX, no. TX 30, E5 E6 E7 E8 E10 E11 E12 E14
• 3/8" socket spanners, long, inner hex, No. IN 30 L, SW 4 5 6 7 8 10 mm 7
• 3/8" socket spanner screwdrivers, long, inner-TX, No. ITX 30 L, T20 T25 T27 T30 T40 T45 T50 ;
• 3/8" socket spanner screwdrivers crosshead, No. IKS 30, PH 1 2 3 ;
• 3/8" socket head screwdrivers Phillips, No. IKS 30 PZD , PZ 1 2 3 ;
• 3/8" socket head screwdrivers Phillips, No. IS 30, SW 5.5x1 6.5x1.2 8x1.2 10x1.6 12x2 mm
• 3/8" spark plug socket spanner with spring clip, no. 52, 20.8 mm
• 3/8" spark plug socket spanner with spring clip, no. 53, 16 mm
• 3/8" spark plug socket spanner with spring clip, No. 56, 18 mm
• Reversible ratchet 3/8", No. 3093 U-20, 200 mm
• 3/8" cardan joint, No. 3095, 51 mm
• 3/8" extension with lock, no. 3090 A-5 -10, 125 250 mm
• 1/2" socket spanners, UD profile, no. D 19, SW 10 11 12 13 14 15 16 17 18 19 21 22 23 24 27 30 32 mm
• Reversible ratchet 1/2", no. 1993 U-20, 270 mm
• 1/2" extension, no. 1990-5-10
• 1/2" handle with knee joint, no. 1996, 255 mm
• 1/2" cartridge joint, 1995, 73.5 mm
• Adapter 1/2" to 3/8", no. 1930

Module 2005 CT4-2-7

• Ring spanners UD profile, no. 2, SW 6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 21x23 24x27 mm
• Open-end spanners, UD profile, no. 7, SW 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21 22 24 27 mm
• Open-end spanners with ratchet, UD profile, no. 7 R, SW 10 11 12 13 14 15 16 17 18 19 22 mm

Module 2005 CT2-119

• Cold chisel flat-oval, no. 95-200, SW 200x23x13 mm
• Piercing 8-sided, no. 99 12-3 12-5 12-6 12-8, SW 3 5 6 8 mm
• Centre punch, no. 100-12, SW 120x12x5 mm
• Punch driver, no. 119-3 -4 -5 -6 -8, SW 3 4 5 6 8 mm
• Pendrive, no. 119-175, SW 4 6 mm | 175 mm
• Tender with guide pin, No. 119-175 6 mm | 175 mm
• Scraper, hollow model, triangular, 132-150, 150 mm
• Scraper, flat model, No. 133 F-150, 150 mm
• Gasket scraper, No. 133 D-150, 150 mm
• Feeler gauge, no. 702 20 M, 0.05 - 1.00 mm
• Thread gauge, no. 706
• TX-schroefdraadmeter E4-E16/T10-T60
• Digital caliper mm+inch, no. 711
• Voltage tester 3-48 V AC/DC, no. 4612

Module 2005 CT2-2160

• 3C Phillips screwdrivers, no. 2160 PH, PH 1 2 3
• Screwdrivers, short form, Phillips head, no. 2161 PH, PH 1
• 3C screwdrivers, cross-head, No. 2160 PZ, PZ 1 2 3
• Screwdrivers, short form, Phillips head, No. 2161 PZ, PZ 1
• 3C screwdrivers saw cut, no. 2150, 3.5 5.5 8 mm
• Screwdrivers, short form, saw cut, no. 2153, 4 mm
• Angled spanners, saw cut, no. 173, 4 8 mm
• Angled spanners, cross-head, no. 174 PH 1+2

Module 2005 CT2-INR

• 1/2" socket wrenches, inner-TX pin, No. ITX 19 B, T20 T25 T27 T30 T40 T45 T50 T55 T60
• 1/2" socket spanner screwdrivers long, XZN, 12-sided, No. INX 19 L, M6 M8 M10 M12 M14
• 1/2" socket spanner screwdrivers 100 mm long, RIBE, No. INR 19 L, M5 M6 M8 M10 M12 M14
• 1/2" socket spanner screwdrivers 188 mm long, RIBE, no. INR 19 L, M6 M8 M10 M12
• XL angle wrench set, no. H 42 KEL-88, 6kt ball head, in holder, 2-10 mm, 8 pack
• Angled spanner set, no. H 43 TX-09, in holder 9 pcs, TX T7-T40

Module 2005 CT2-2143 KTX

• Elbow spanner for internal TX screws T10 T15 T20 T25 T27 T30

Module 2005 BASIC / 2005 AUTO

• Triangular file 8", no 8725, 200x20 mm
• Triangular file 8", no. 8719, 200x14 mm
• Blunt flat file 8", no. 8701 , 200x20 mm
• Round file 8", no. 8722 , 200x8 mm
• Brake shoe file, no. 8726
• Tape measure wood 2 m, no. 4533-2
• 3C screwdrivers saw cut, no. 2150 6.5 mm, 200 mm
• Protective glove M-Pact L/10, no. 922
• Torque spanner TORCOFIX K 1/2", no. 4550, 40-200 Nm
• (Assembly/removal tool, No. 38 16", 400 mm Assembly/removal tool, No. 38 20", 500 mm
• Metal stuffing box, No. 1500 ED-70 XL, empty, 625x77x40 mm
• ES module, no. 1500 E-S L, empty
• Length module, no. 1500 ED-150, empty, 480x150 mm
• Knee pad, no. 906 310x157, 5x42 mm, with divisions

Product description

• S 2005 AUTO Tool set CT Attachments Individual parts

Features

• Tools in metric sizes,1/4"-3/8"-1/2" socket wrench set in CT module no. 2005 CT4-U-20,Combination spanner assortment in CT module no. 2005 CT4-2-7,1/2" screwdriver inserts in CT module no. 2005 CT2-INR,41-piece screwdriver set in Check-Tool-Module no. 2005 CT2-2143 KTX,7-piece tool assortment in CT-module no. 2005 CT4-8000,Tool assortment in CT-module no. 2005 CT4-2160-119,36-piece assembly handle no. 38,400 500 mm Caliper brush no. 643,Caliper file no. 8726,8" 3-sided workshop file no. 8719 2-8,200x14 mm 8" flat punch file Workshop file no. 8701 2-8,200x8 mm 8" semicircular workshop file no. 8725 2-8,200x20 mm 8" round workshop file no. 8722 2-8,200x20 mm 3C screwdriver slot no. 2150 6.5-200.6.5 mm Kneeboard no. 906,Mechanical and assembly gloves M-Pact no. 922 10,1/2" torque spanner TORCOFIX K no. 4550-20,40-200 Nm,Wooden folding ruler no. 4533-2,2 m longitudinal module no. 1500 ED-150 K,empty,480x150 mm [2x] Spacer module empty no. 1500 ED-70 K,475x77x40 mm ES module no. 1500 E-S L,310x157 mm,5x42 mm,divided
