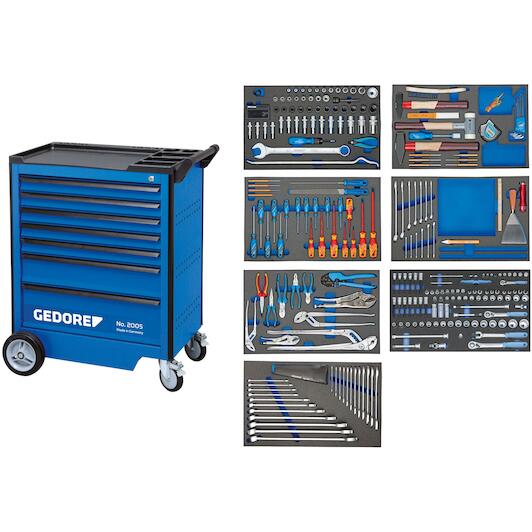

GEDORE 2005 S-270 TRUCK tool trolley blue with 7 drawers filled 270-piece - 3100073

Scope of delivery

• 1/4 spanners, no. 20, SW 5.5 6 7 8 9 10 11 12 13 14 mm
• Reversible ratchet 1/4", no. 2093 U-20 1/4" cross-handle ratchet, no. 2093 U-3 T
• 1/4" extension, no. 2090-4 -6, 97 148 mm
• 1/4" cardan joint, no. 2095
• 3/8" socket spanners, no. D 30, SW 8 9 10 11 12 13 14 15 16 17 18 19 21 22 mm
• 3/8" socket spanners, no. IN 30 L, SW 4 5 6 7 8 10 7
• 3/8" socket head screwdrivers, No. ITX 30 L, T20 T25 T27 T30 T40 T45 T50 9
• 3/8" socket spanners, no TX 30, E5 E6 E7 E8 E10 E11 E12 E14 7
• 3/8" socket spanners, No. IKS 30, 1 2 3 7
• 3/8" socket head screwdrivers, No. IKS 30 PZD 1 2 3 7
• 3/8" socket head screwdrivers, No. IS 30, SW 5.5 6.5 8 10 12 mm
• 3/8" spark plug socket spanner with spring clip, 20.8 mm
• 3/8" spark plug socket spanner with spring clip, 16 mm
• 3/8" spark plug socket spanner with clamping spring, 18 mm
• Reversible ratchet 3/8", no. 3093 U-20
• 3/8" extension with lock, no. 3090 A-5 -10
• 3/8" cardan joint, no. 3095
• 1/2" socket spanners, no. D 19, SW 10 11 12 13 14 15 16 17 18 19 21 22 23 24 27 30 32 mm
• 1/2" changeable ratchet 1/2", no. 1993 U-20
• 1/2" extension 1/2", no. 1990-5 -10, 125 250 mm
• 1/2" extension 1/2" to 3/8", no. 1930
• 1/2" cardan joint 1/2", no. 1995
• 1/2" handle with knee joint, no. 1996, 255 mm

• Ring spanners, UD profile, no. 7, SW 6 7 8 10 12 13 14 15 16 17 19 23 24 mm
• Zip chisel flat-oval, no. 96-175, 175x17x11 mm
• Timber folding rule, no. 4533-2, 2 m
• Putty knife, no. 0175-10, 100 mm
• LED torch

• 10" water pump pliers, no. 145 10 C, 7-way adjustable
• 15" water pump pliers, no. 145 15 C, 9-way adjustable
• 20" water pump pliers, no. 145 20 C, 11-way adjustable
• 7" + 12" Grip Pliers, no. 137
• Precision crimping pliers for insulated cable lugs, no. 8142
• Combination pliers with 2C handle, German model, no. 8210-160 JC, 160 mm
• Diagonal Cutter Pliers POWER with 2C grip, no. 8316-140 JC, 140 mm
• Diagonal Cutter Pliers POWER with 2C grip, No. 8316-200 JC, 200 mm
• Phone pliers with 2C grip, no. 8133-180 JC, 180 mm
• VDE telephone pliers, curved with sleeve insulation, no. VDE 8131 AB-200 H, 200 mm

• 24" (dis)assembly iron, no. 39, bent for trucks, 610 mm
• Ring spanners, UD profile, no. 7, SW 36 mm
• Electronics diagonal cutters, no. 8350-9
• 1/4" bit screwdriver, no. 169
• 1/4" bit socket assortment, no. 620-024, 24 parts
• 1/2" socket spanners, UD profile, no. D 19, SW 36 mm
• 1/2" socket spanners, UD profile, no. D 19 L, SW 10 12 13 14 15 16 17 18 19 21 22 24 27 30 32 mm
• 1/2" socket spanners 6-kt, no. IN 19, SW 4 5 6 7 8 9 10 12 14 17 19 mm
• 1/2" socket spanners, no. TX 19, TX E10 E11 E12 E14 E16 E18 E20 E24
• 1/2" impact spanners 6-kt, no. K 19, SW 13 14 15 16 17 18 19 21 22 23 24 27 mm
• 1/2" impact spanner extension, no. KB 1990-5, 125 mm
• Retainer, no. KB 1970 diam. 19 mm for 10-14 mm, diam. 24 mm for 15-32 mm
• Locking pin, no. KB 1970 diam. 3 mm for 10-14 mm, diam. 3 mm for 15-32 mm

• VDE screwdriver cutter, no. VDE 2170, 2.5 mm
• VDE screwdrivers SLIM DRIVE saw cut, no.VDE 2172, 4 5.5 6.5 mm
• VDE screwdriver SLIM DRIVE Phillips, no.VDE 2162 PH 1
• VDE screwdriver Phillips head, no. VDE 2160 PH 0 3 4
• 3C Phillips screwdriver, no. 2160 PH 2
• 3C screwdrivers TX with pin, no. 2163 TXB, T7 T8 T9 T10 T15 T20 T25 T27 T30 T40
• Pin driver, no 119, Ø 2 3 4 5 mm
• 10" flat file blunt, no. 8701, 250x25 mm
• 10" round file, no. 8722, 250x10 mm

• Spanners, No. 6, SW 6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 21x23 24x27 25x28 30x32 mm
• Ring spanners extra long, UD profile, no. 7 XL, SW 10 12 13 14 17 19 22 24 27 30 32 mm
• Pocket slide gauge, no. 710

• Bench hammer ROTBAND-PLUS with hickory handle, no. 600 H-600 H-1500, 600 1500 g
• Impact-absorbing nylon hammer, no. 248 H-50, D. 50 mm
• Centre punch, no. 100-12, 120x12x5 mm
• Peg driver, no. 119, Ø 6 7 8 9 10 mm
• Gasket scraper, No. 133 K, 240 mm
• Slotted or bodywork chisel flat-oval, No. 104, 240x26x7 mm
• Tape measure, no. 4534-8, 8 m
• XL ball point spanner set, in holder, 8-parts, no. H 42 KEL-88, 2-10 mm
• Voltage detector, no. 4610
• Steel brush, no. 644, 3 rows

Product description

• 2005 S-270 TRUCK Tool trolley with tool assortment

Features

• Ideally suited for the repair and maintenance of commercial vehicles,construction machinery and trucks,Tool assembly in Check-Tool-Modules (CT),tools in metric sizes,For repair and inspection,Completeness check by means of 2-coloured foam inserts,Each tool is secured in its own recess,easily accessible and removable,resistant to oils and greases,total load capacity 500 kg,In tool trolley 2005 0511,Wide drawers (W 640 x D 400 mm),fully extendable,removable.,safety locking mechanism per drawer,one-handed operation,centrally lockable via cylinder lock,drawers loadable up to 40 kg,bottom heavy drawer up to 60 kg,dimensions: H 985 x W 775 x D 475 mm
