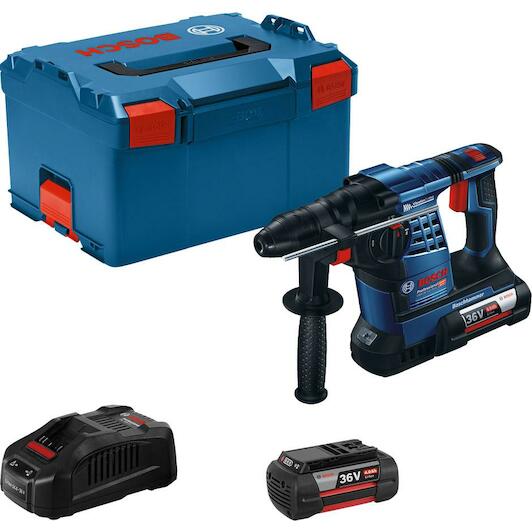

Scope of delivery
- Additional handle - 2 602 025 191
- Depth stop 310 mm - 1 613 001 003
- 1/1 L-BOXX inlay for machine and charger - 1 600 A00 4L0
- L-BOXX 238 - 1 600 A01 2G2
- Quick charger
- 2x rechargeable battery GBA 36V 4.0Ah - 1 600 Z00 03C
Product description
- The powerful 36-volt SDS-Plus cordless hammer drill
- Impact energy of 3.2 J for high processing speed
- KickBack Control and Electronic Precision Control for advanced user protection and improved machine handling
- Durable 36V battery for longer running time for light chiselling work.
- Intended for drilling and chiselling in concrete, masonry, wood and metal
- Also features constant speed, LED light, overload clutch, variable speed, Vario-Lock and Vibration Control
Key features

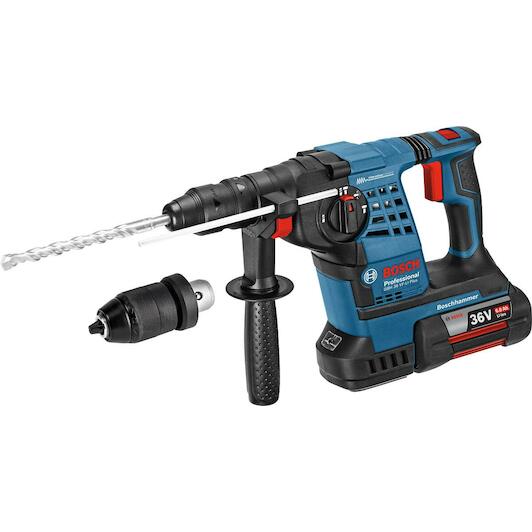

- Metal drill chuck 1.0 - 13.0 mm
- Battery charge indicator shows remaining battery charge
- Combination hammer with chisel function - No turning, only impact function
- Comfortable working thanks to low vibration due to foam padding on the handles
- Work area illumination
Key features according to our expert
-
Battery voltage: 36 V
-
Capacity (battery): 4 Ah
-
Tool holder type: SDS-plus
-
Impact energy: 3,2 J
-
Max. drilling diameter (concrete): 28 mm
-
Supplied in: System case
-
Type of system case: L-BOXX
-
Weight: 3,2 kg
-
Number of batteries included: 2
Specifications / All features
- Battery voltage
- 36 V
- Capacity (battery)
- 4 Ah
- Tool holder type
- SDS-plus
- Impact energy
- 3,2 J
- Max. drilling diameter (concrete)
- 28 mm
- Supplied in
- System case
- Type of system case
- L-BOXX
- Weight
- 3,2 kg
- Number of batteries included
- 2
- Uncertainty k
- 1.5 m/s²
- Vibration emission value 2
- 10.7 m/s²
- Max. drill diameter in wood
- 30 mm
- Impact energy (according to epta 05/2016)
- 3,2 J
- Vibration emission value
- 11.1 m/s²
- Number of strokes at rated speed
- 0 - 4200 min-1
- Uncertainty k 2
- 1.5 m/s²
- Uncertainty k 3
- 3 dB
- Sound power level
- 101 dB(A)
- Tool holder
- SDS plus
- Max. drilling diameter in metal
- 13 mm
- Drilling diameter in concrete with hammer drills
- 4 - 28 mm
- Rated speed
- 0 - 940 min-1
- Sound pressure level
- 90 dB(A)
- Optimal application range concrete with hammer drills
- 8 - 18 mm
