Scope of delivery
- SDS-plus drill bit (8 x 140 mm)
- Transport case
Product description
- Powerful robust motor delivers constant high torque
- Dual protection from the interlinked mechanical and electronic clutches to protect both user and tool

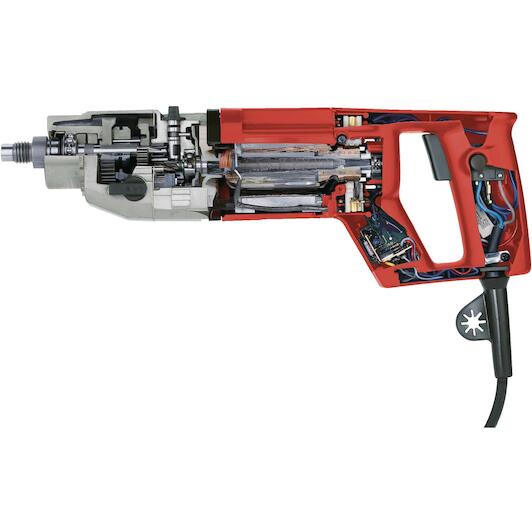

- Robust construction with metal gearbox

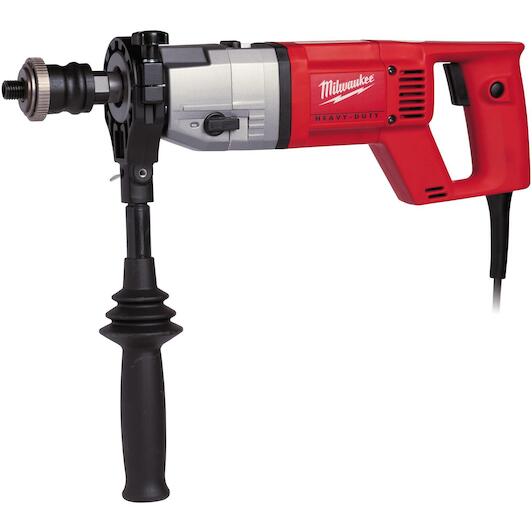

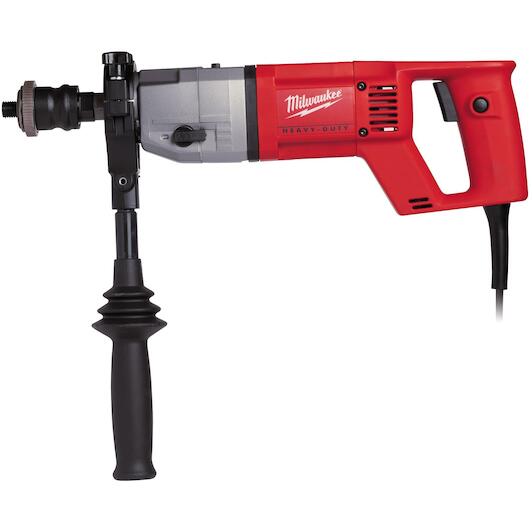

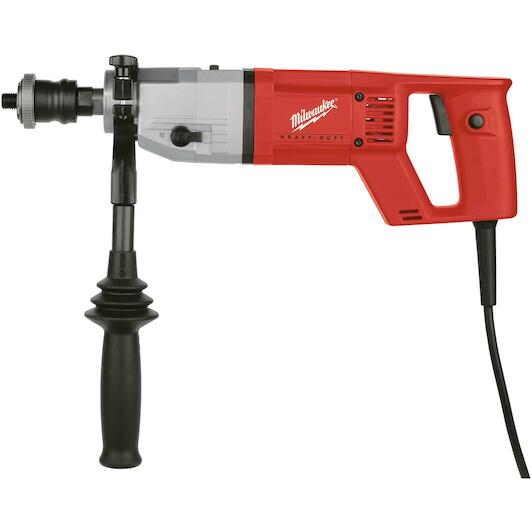

- Safe handling from the long AVS side handle and "D- shaped" back handle
- 2-speed gear box

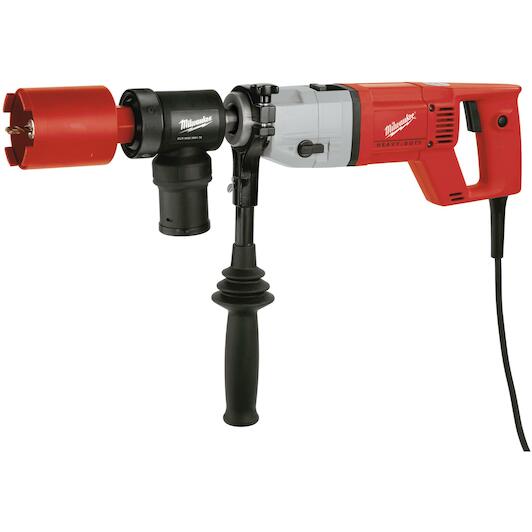

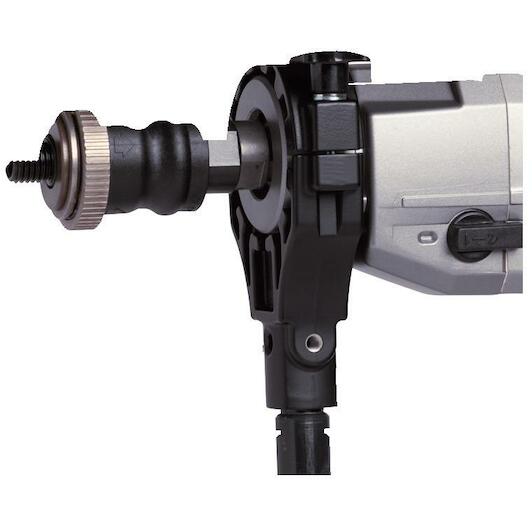

- M16 FIXTEC adaptor for fast core bit changing
- Soft hammer action - when activated allows the core bit to cut faster and easier
- Soft start via accelerator switch for precision and controlled drilling

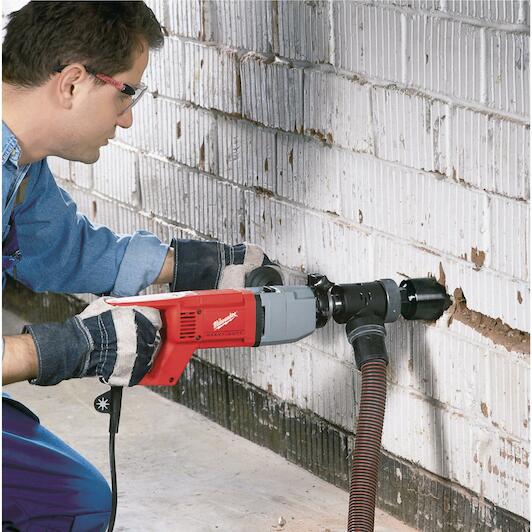

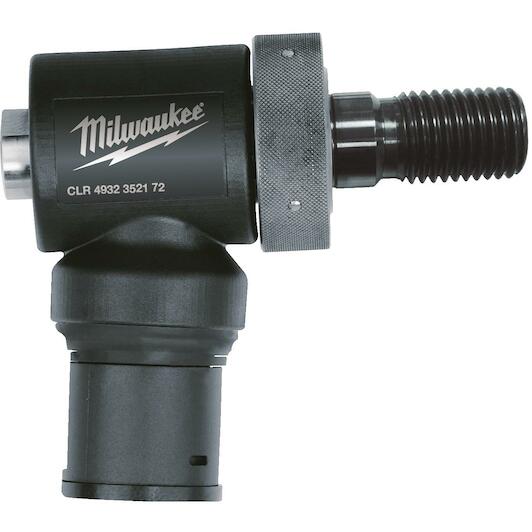

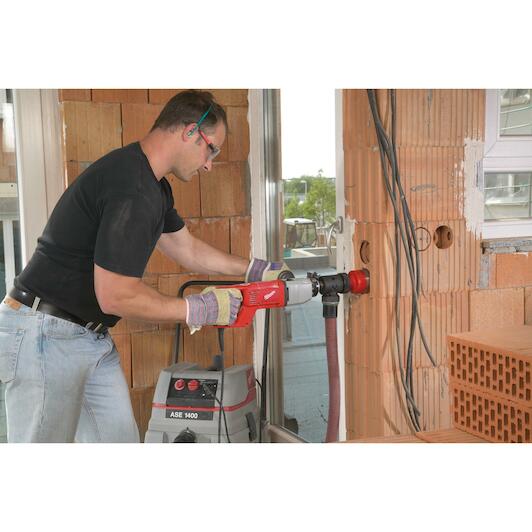

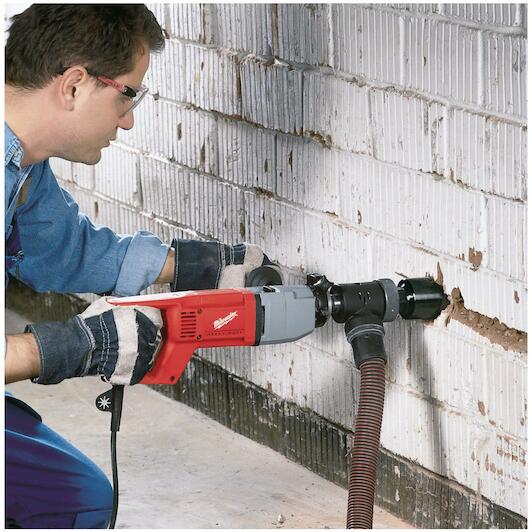

- FIXTEC Cleanline rotor (additional accessory) the best solution for dust extraction
- 4 m cable

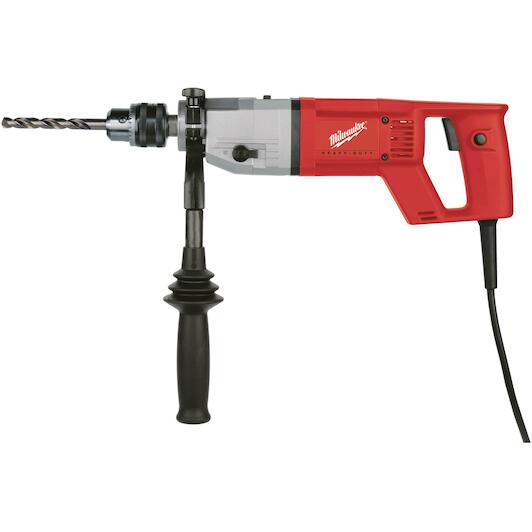

- Supplied with quick change adaptor for M16 diamond cores, SDS-plus pilot drill bit (8 x 140 mm)
Key features according to our expert
-
Input power: 1500 W
-
Tool holder size: M18
-
Tool holder type: External thread
-
Thread type (tool holder): Metric
-
Supplied in: Case
-
Weight: 4,2 kg
-
Max. drilling diameter (concrete): 162 mm
Specifications / All features
- Input power
- 1500 W
- Tool holder size
- M18
- Tool holder type
- External thread
- Thread type (tool holder)
- Metric
- Supplied in
- Case
- Weight
- 4,2 kg
- Max. drilling diameter (concrete)
- 162 mm
- Sound power level (lwa(db(a))
- 111
- Load speed (rpm)
- 0 - 890 / 0 - 1770
- Weight (kg)
- 4.2
- Max chuck capacity (mm)
- 162
- Vibration level drilling in metal, deviation (m/s²)
- 1.5
- Vibration level when drilling into concrete, deviation (m/s²)
- 1.5
- Sound power level, deviation (db(a))
- 3
- No-load strokes (per min)
- 24,000 / 48,000
- Sound pressure level, deviation (db(a))
- 3
- Vibration level drilling, deviation (m/s²)
- 3.6
- Vibration level when drilling (m/s²)
- 13
- Max. static locking torque (nm)
- 50
- Vibration level when drilling into concrete (m/s²)
- 20
- Max. drill ø in stone (mm)
- 162
- Vibration level drilling in metal (m/s²)
- <2.5
- Power consumption (w)
- 1500
