Scope of delivery
- MM 7-1 digital multimeter
- Set of safety measuring leads red/black
- Temperature sensor type K
- 9V battery
- Operating instructions

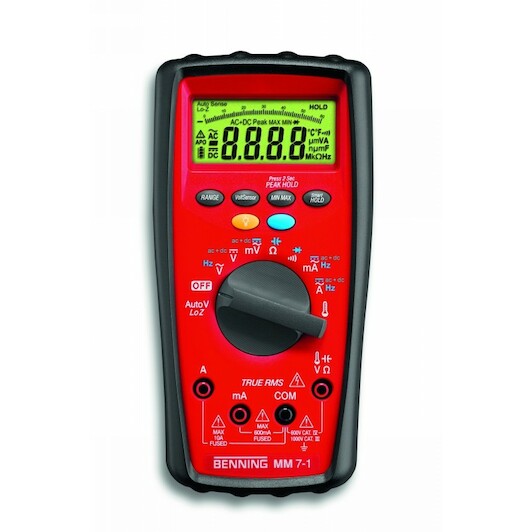

Product description
- Digital multimeter with maximum safety for industrial applications
- TRUE RMS measurements for precise measurement data even with non-sinusoidal signal progression
- Highest measurement category CAT IV 600V for maximum safety
- AutoV function for automatic AC/DC voltage recognition and low input impedance (LoZ) to suppress capacitive and inductive voltages
- Integrated voltage sensor contactlessly signals phase voltage and cable breakage in lines
- LC display with bar graph indication and backlighting
Key features
- Display size 6,000
- Accuracy 0.08 %
- Voltage AC 10 µV - 1,000 V
- Voltage DC 10 µV - 1,000 V
- Current AC 10 µA - 10 A
- Current DC 10 µA - 10 A
- Resistance 0.1 ohm - 40 Mohm
- Transit/diode yes/yes
- Frequency 0.01 Hz - 100 kHz
- Capacitance 1 nF - 10 mF
- Temperature -40 °C to +400 °C
- Voltage sensor yes
- Memory function HOLD, MAX/MIN
- Measuring method TRUE RMS
- Measurement category CAT IV 600V
Key features according to our expert
-
Max. voltage AC/DC: 1000 V
-
Measurement temperature: Yes
-
Digital: Yes
-
Battery type: 9V
-
Low battery message: Yes
-
Automatic shut-off: Yes
-
With current clamp: No
-
Diode test: Yes
-
Max. current AC/DC: 10 A
-
Measurement Lo-Z: Yes
-
Continuity test: Yes
-
Measurement of noise: No
-
Measurement of electrical capacity: Yes
-
Measurement frequency: Yes
-
Measurement resistance: Yes
-
Current measurement: Yes
-
Measurement voltage: Yes
-
Max. electrical capacity: 10000 µF
-
Max. frequency: 100 kHz
-
Max. resistance: 40 MOhm
Specifications / All features
-
Brand:
BENNING
-
02374103
-
EAN:
4014651440852
-
Supplier number:
BENNING 7452
- Max. voltage ac/dc
- 1000 V
- Measurement temperature
- Yes
- Digital
- Yes
- Battery type
- 9V
- Low battery message
- Yes
- Automatic shut-off
- Yes
- With current clamp
- No
- Diode test
- Yes
- Max. current ac/dc
- 10 A
- Measurement lo-z
- Yes
- Continuity test
- Yes
- Measurement of noise
- No
- Measurement of electrical capacity
- Yes
- Measurement frequency
- Yes
- Measurement resistance
- Yes
- Current measurement
- Yes
- Measurement voltage
- Yes
- Max. electrical capacity
- 10000 µF
- Max. frequency
- 100 kHz
- Max. resistance
- 40 MOhm
