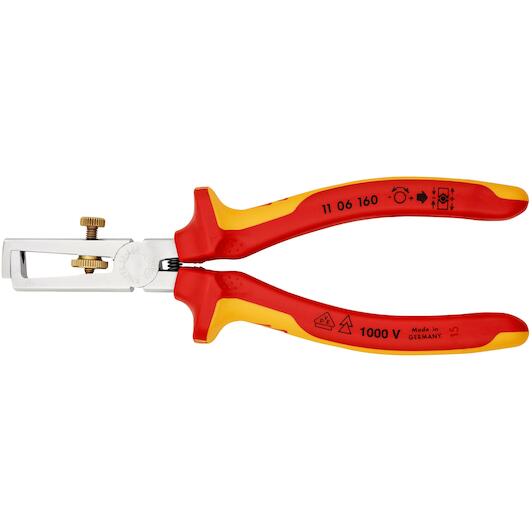

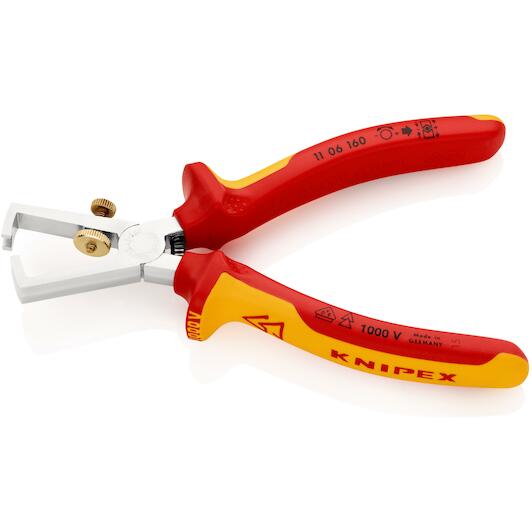

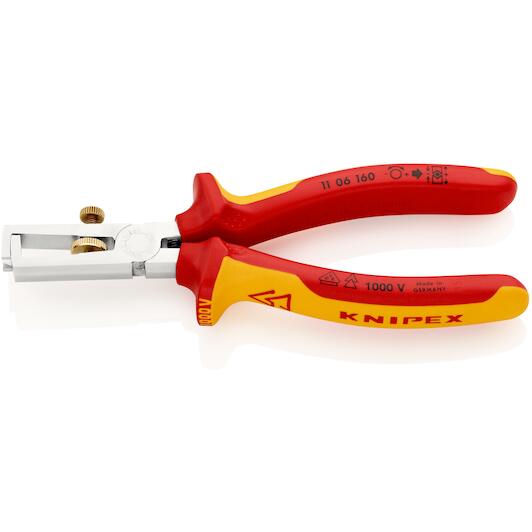

Product description
- For single-, multi- and fine-wire cables with plastic or rubber insulation max Ø 5.0 mm or 10 mm² conductor cross-sections

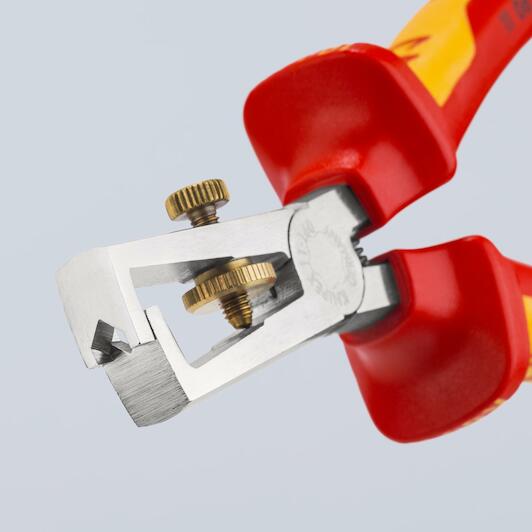

- Simple adjustment of the required wire diameter thanks to a knurled screw and lock nut
Key features according to our expert
-
With crimping function: No
-
For max. cable cross-section: 10 mm²
-
VDE approved: Yes
-
Adjustment type: Manuel
-
Length: 160 mm
-
With cutting function: No
-
With automatic stripping function: No
-
Max. cable diameter: 5 mm
Specifications / All features
-
Brand:
KNIPEX
-
41190098
-
EAN:
4003773021933
-
Supplier number:
KNIPEX 11 06 160
- With crimping function
- No
- For max. cable cross-section
- 10 mm²
- Vde approved
- Yes
- Adjustment type
- Manuel
- Length
- 160 mm
- With cutting function
- No
- With automatic stripping function
- No
- Max. cable diameter
- 5 mm
- Cup
- chromed
- Stripping capacities square millimetres
- 010 mm²
- Reach compliance
- does not contain SVHC
- Vde-approved
- yes
- Rohs compliance
- irrelevant
- Stripping capacities (diameter)
- Ø 5.0 mm
- Weight
- 180 g
- Awg
- 8
- Standard
- DIN EN 60900 IEC 60900
- Tang
- chromed
